08
T2 = 105H
Academic

Formula
What if architecture could be written as an equation? Our title emerged from the realization that our entire process follows a mathematical logic. It begins with a simple flipped table – the ⊥ symbol – which becomes our fundamental building block. But architecture isn't about single elements; it's about relationships. When we square this symbol (²), we're capturing something essential: the moment when individual tables start talking to each other, creating complex spatial dialogues from primitive components.
The equals sign became inevitable once we understood that our computational process was essentially solving an equation. Feed the algorithm with stacked table combinations, and it generates precisely what we need: 10⁵ possibilities of H – Houses. The mathematical notation isn't decoration; it's the most honest way to describe architecture born from algorithms, where systematic rules unlock infinite variety.

Houses on Houses
How do you stack houses? This simple question sparked our exploration into a revolutionary approach to mass housing that balances efficiency with human-scale living.
Our project reimagines how we can produce thousands of homes while preserving the informality and individuality that make spaces truly livable. Rather than creating identical boxes, we developed a system that generates infinite variations from a few simple components.

Process
The process begins surprisingly low-tech: we physically throw, shake, slide, and rearrange small models on different sites. This playful experimentation helps us discover natural arrangements that respond to each location's unique characteristics. These physical configurations are then scanned and translated into digital geometries that feed directly into our computational design system.

Tables
At the heart of our system are prefabricated table modules – simple structures consisting of a base plate and one or two load-bearing walls. These tables range from 7 to 14 meters in length, making them easy to transport while offering flexibility in arrangement. Despite their simplicity, or perhaps because of it, these primitive elements can generate remarkably diverse architectural outcomes.

Algorithm
Our Grasshopper algorithm follows three fundamental rules:
• Maximize density: fit as many tables as possible within the site constraints
• Ensure connection: every module must connect to at least one other
• Maintain structure: preserve clear vertical load paths through aligned walls

The program iterates through countless possibilities, optimizing arrangements and adding structural columns where needed. This computational approach allows us to rapidly generate unique solutions for any site condition.

From structure to space
Once the tables are stacked, we fill the gaps with additional prefabricated elements that divide spaces and provide horizontal reinforcement. These secondary components are assembled on-site and screwed directly to the table modules. The result is a hybrid system where purple represents our factory-made table modules and green shows the site-assembled elements.

Primitive mass production, individual informal expression This workflow enables us to scale from single buildings to entire neighborhoods of 10,000 housing units or more. Each development maintains diversity and variety while benefiting from the efficiencies of mass production. The structures are designed to be inhabited – or perhaps better said, squatted – by people who bring their own interests, habits, and ideas of living to the spaces.

Outcome
What emerges is architecture that feels both systematic and spontaneous, efficient yet informal. By encoding computational rules that mirror human intuition about stacking and connection, we create spaces that are ready to be personalized and lived in, rather than simply occupied.

Collaboration with Johannes Hoppensack and Lucas Fischötter.
Project carried out as part of the Studio Gilles Retsin at D-ARCH, ETHZ.

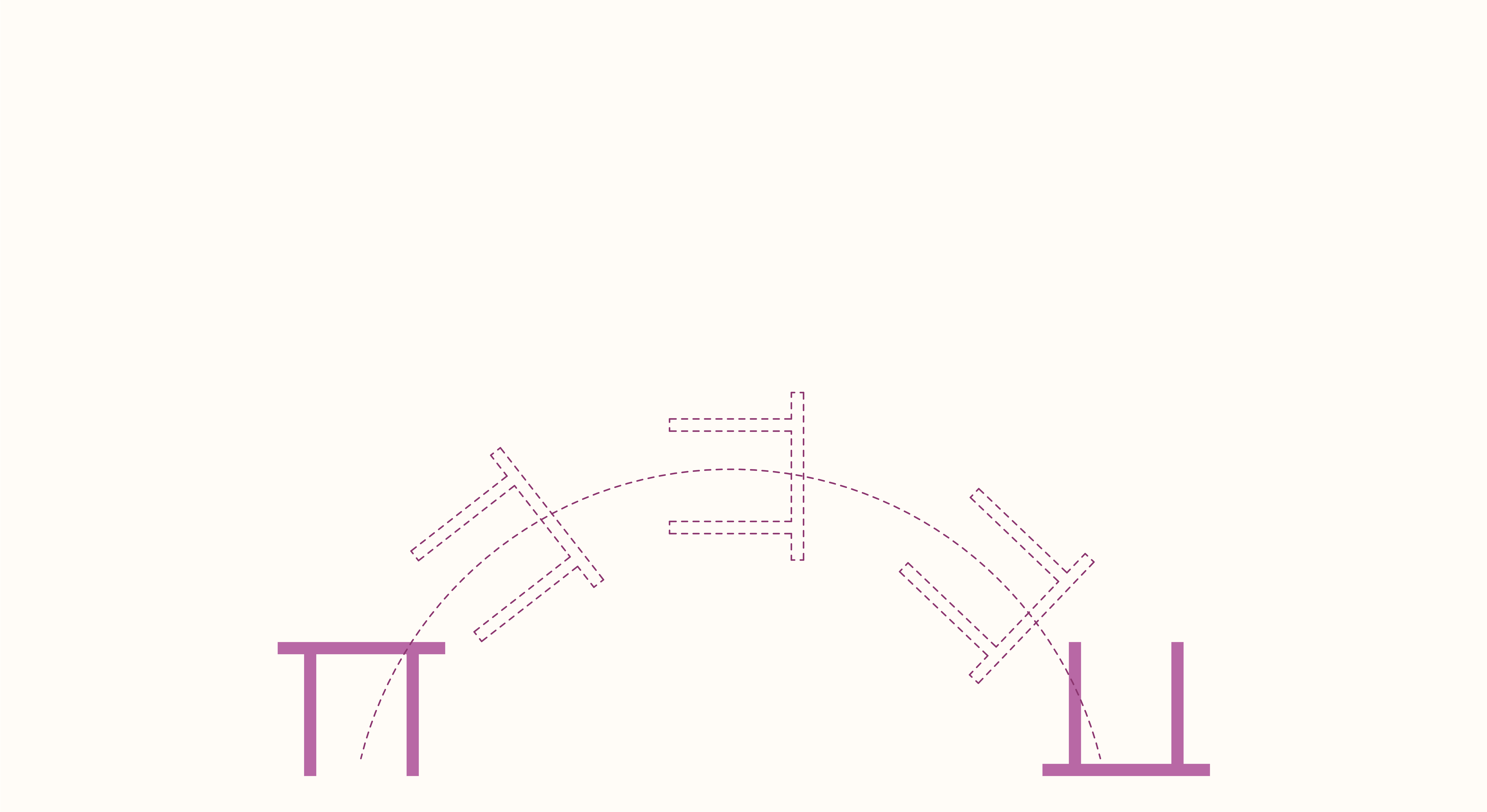

Abstract and minimalistic top-down illustration of a purple T-shaped element rotating in stages along a dashed arc, set against a beige background, conveying motion or a dynamic architectural concept.

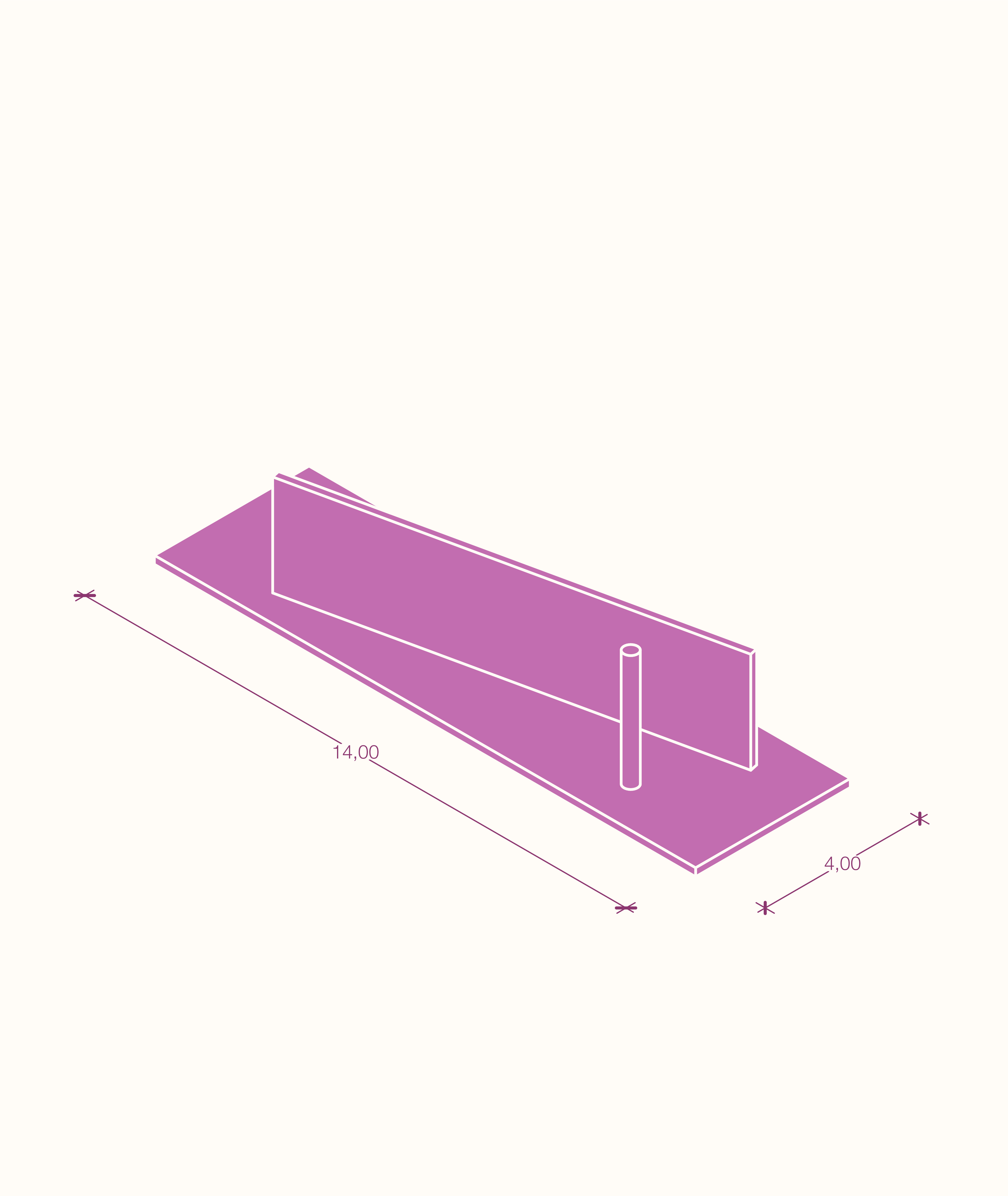

Isometric illustration of a magenta modular prefabricated wood construction element, with indicated dimensions of 14.00 and 4.00, showcasing a component for efficient architectural assembly.
Urban grid pattern composed of orderly rows of pink rectangular blocks, centrally disrupted by algorithmic scattering, illustrating a departure from conventional urban planning and a generative design approach.

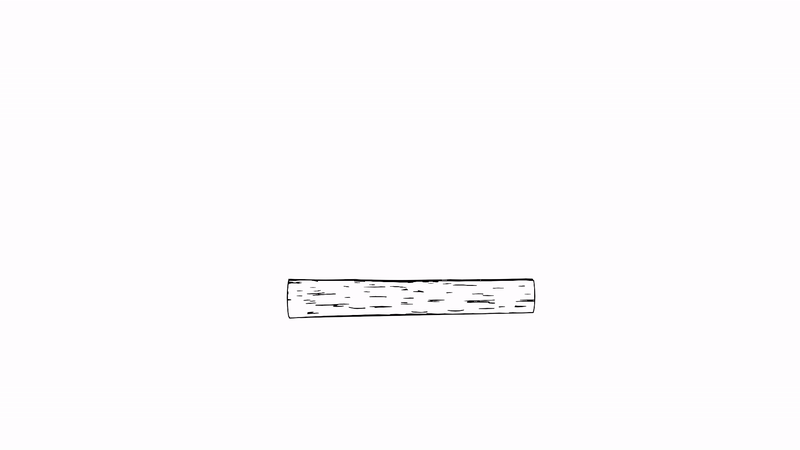

GIF: Robotic manufacturing process transforming wooden logs into prefabricated building elements.

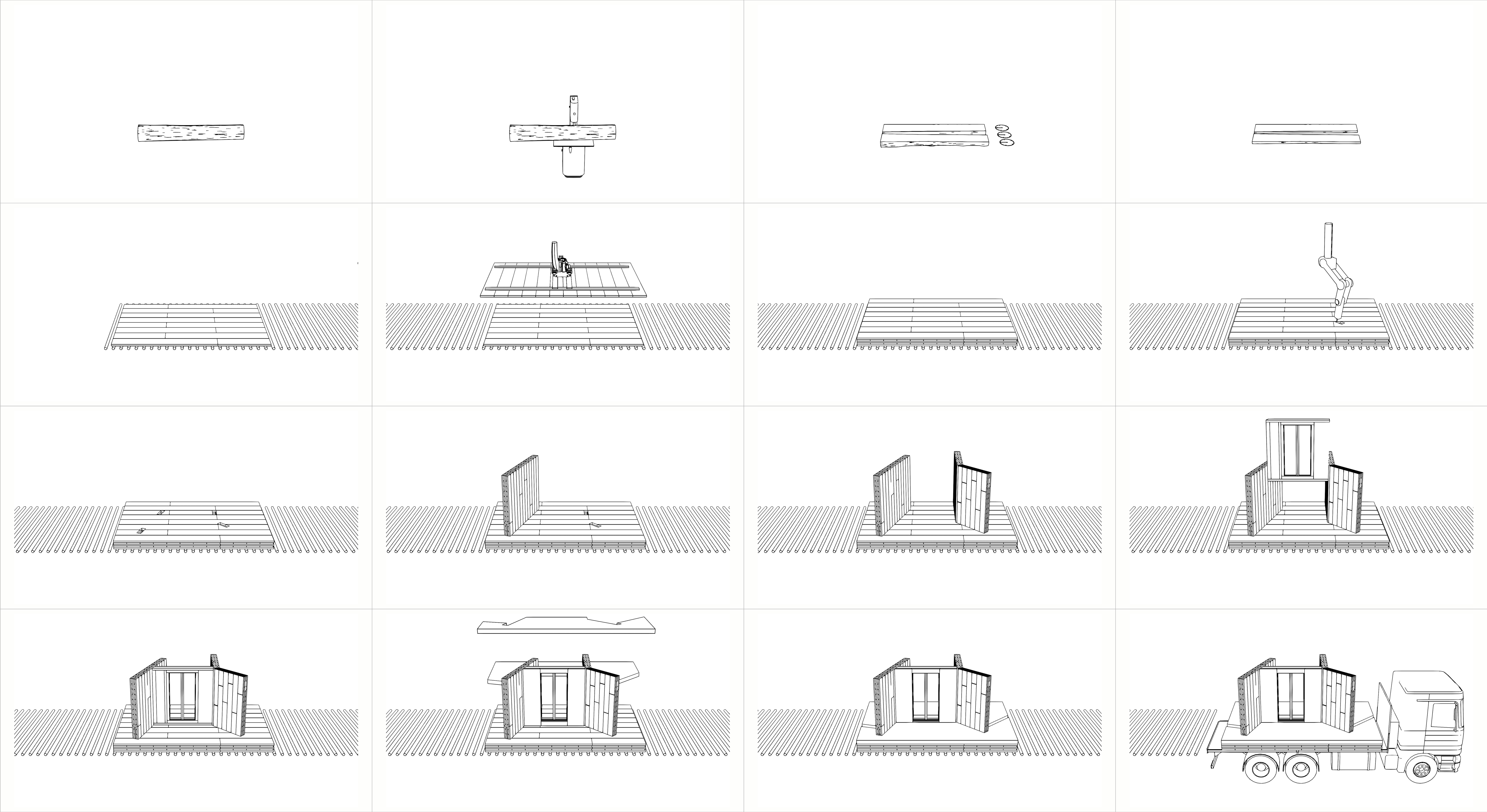

Static grid diagram detailing the sequential stages of a robotic automated manufacturing process, from wooden logs to finished prefabricated construction elements, illustrating the efficiency of off-site timber construction.
Video: Interactive urban planning demonstration with users moving prefabricated building elements on a model.

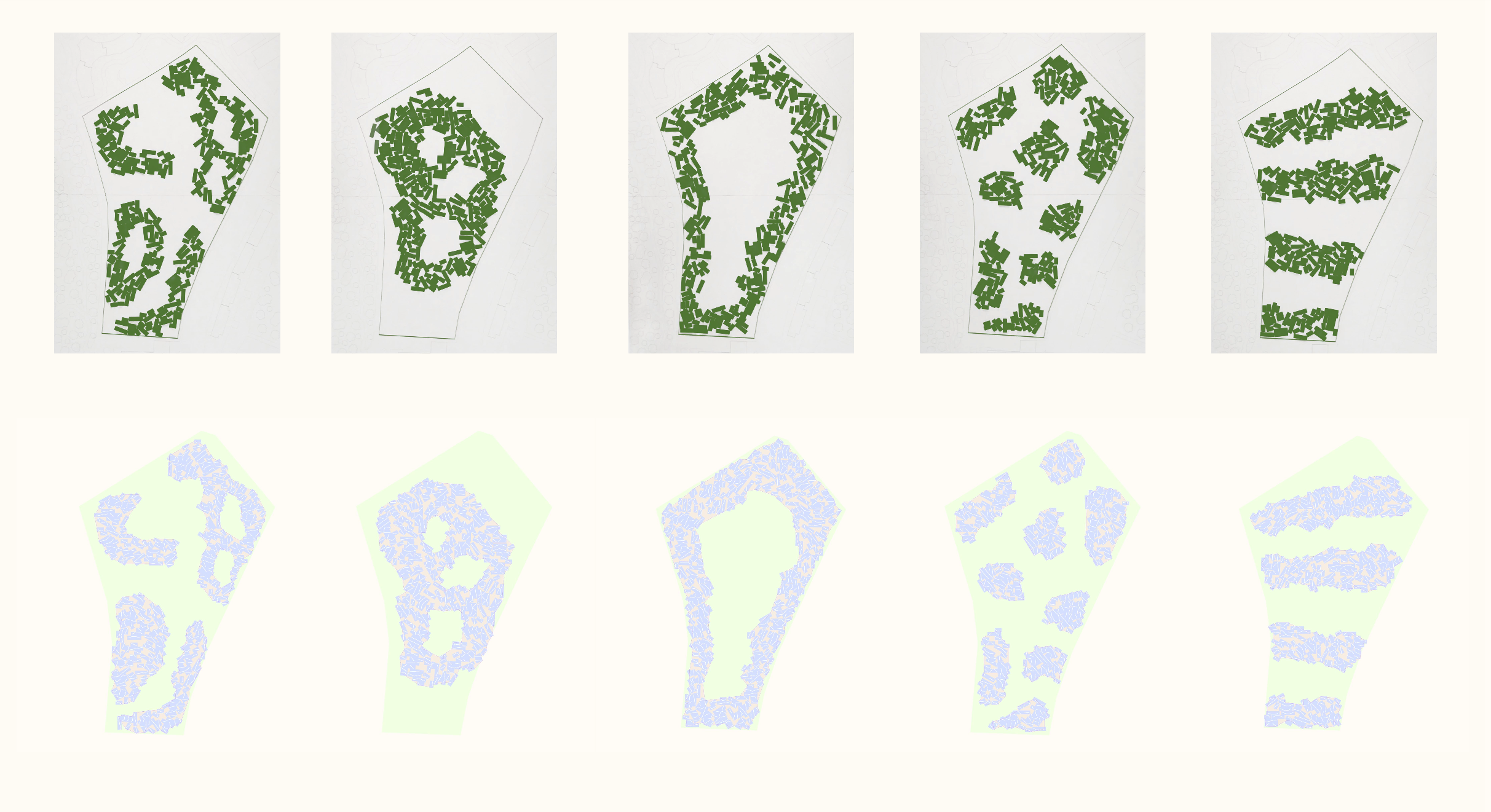

Comparative diagram presenting multiple architectural possibilities created through interactive model manipulation (top row of green organic shapes) and their corresponding algorithmic interpretations (bottom row of light blue organic shapes), generating various floor plan layouts.

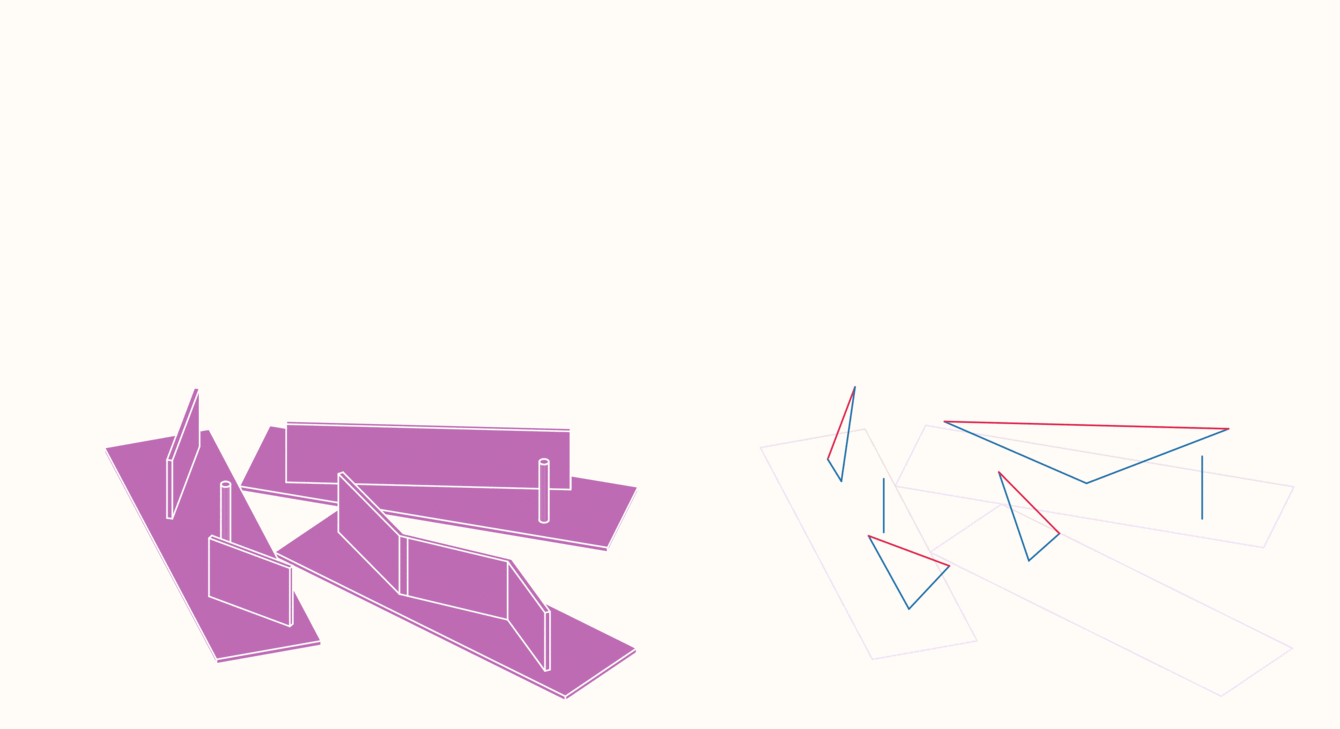

Visualization of stacking prefabricated wooden elements with structural force and load diagrams.
Video: Autonomous algorithm optimizing structural solution for a building with real-time force analysis.
Isometric view of algorithmic urban planning with varied modular prefabricated buildings.

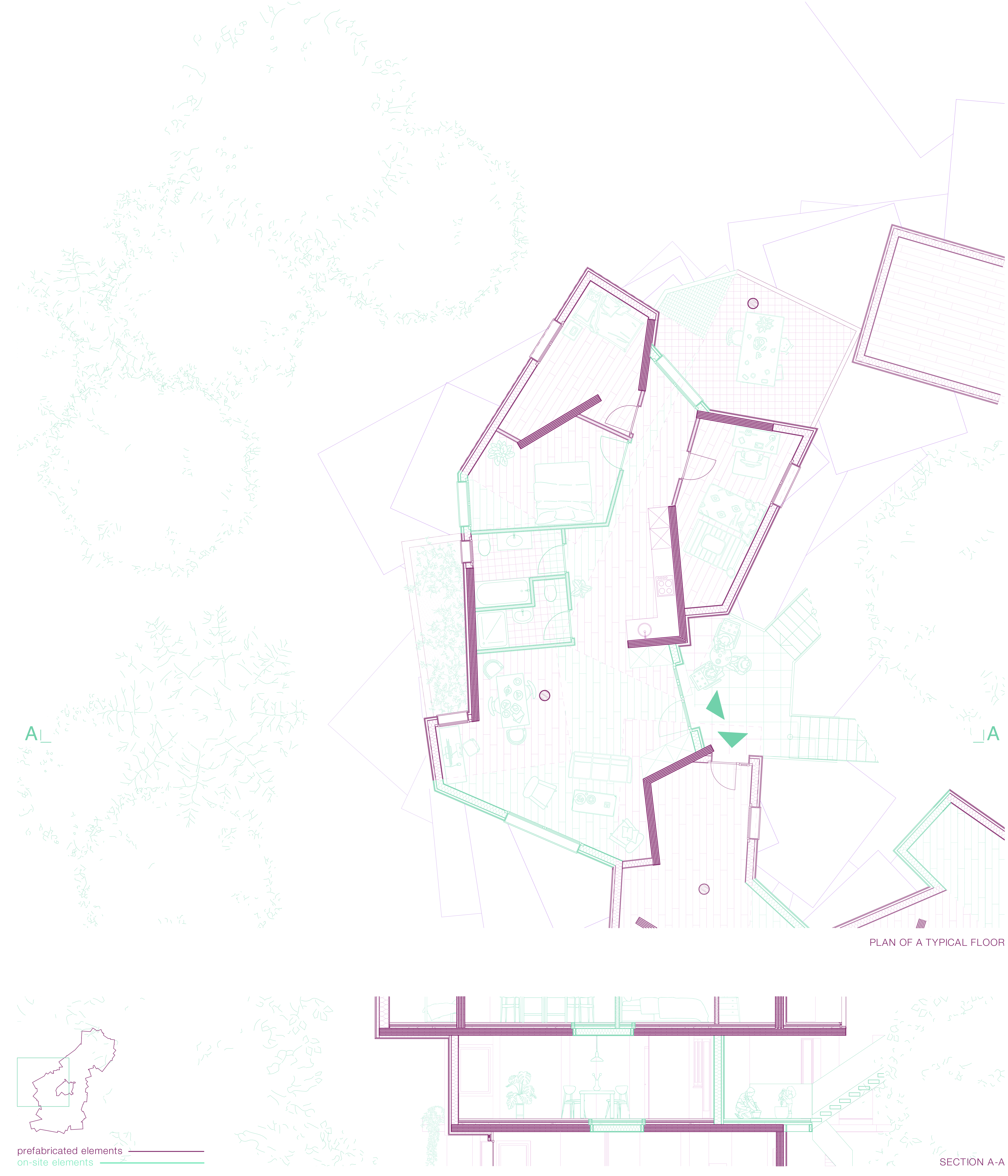

Detailed architectural drawing at 1:50 scale, showing a floor plan and cross-section of a prefabricated wooden construction system, with technical specifications and structural details, illustrating the design and assembly of modular timber buildings.
Comparative diagram presenting multiple architectural possibilities created through interactive model manipulation (top row of green organic shapes) and their corresponding algorithmic interpretations (bottom row of light blue organic shapes), generating various floor plan layouts.

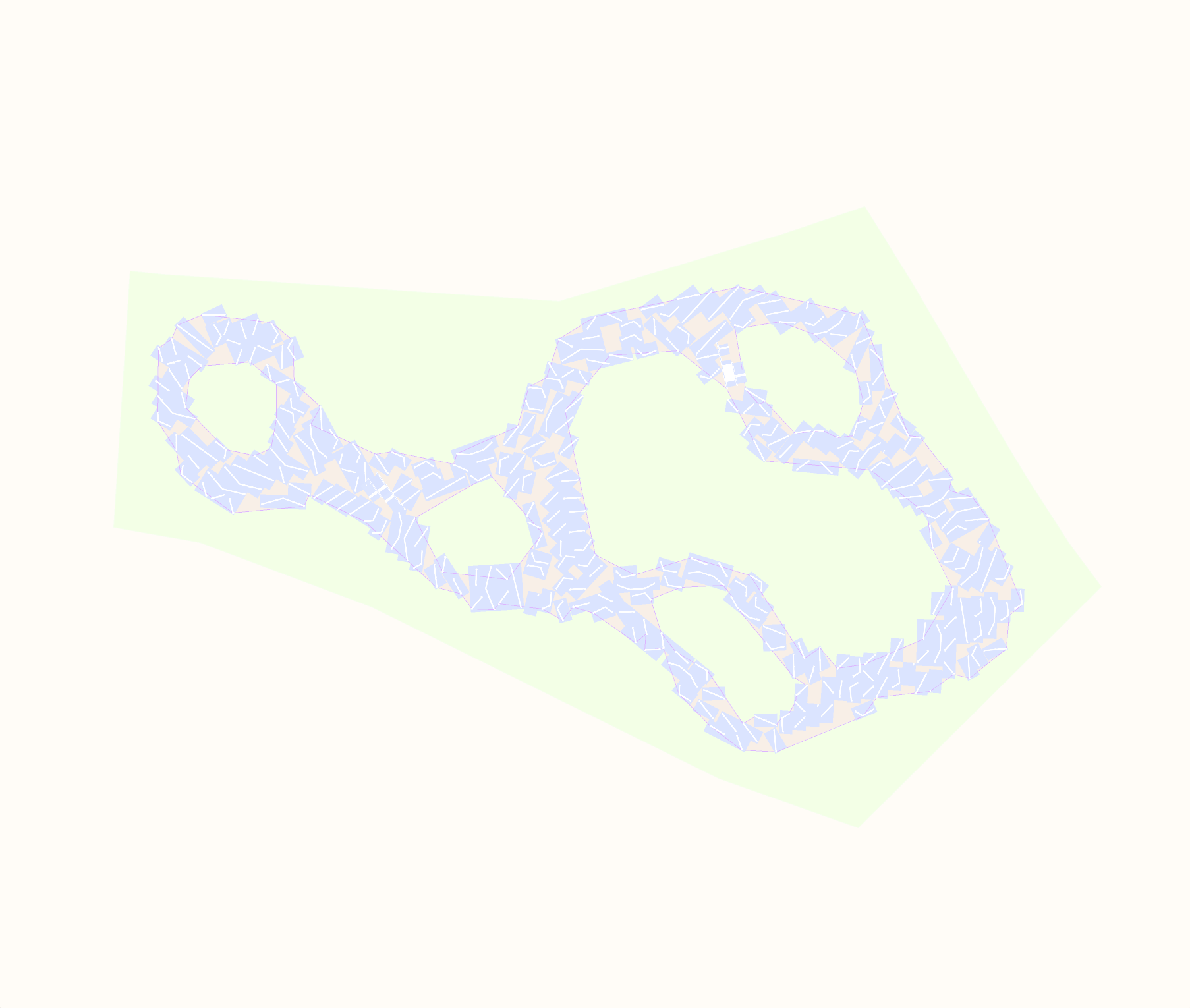

Architectural diagram presenting an algorithmically generated floor plan with interconnected, light blue ribbon-like spaces within a light green boundary, showcasing a computational design approach for complex layouts.

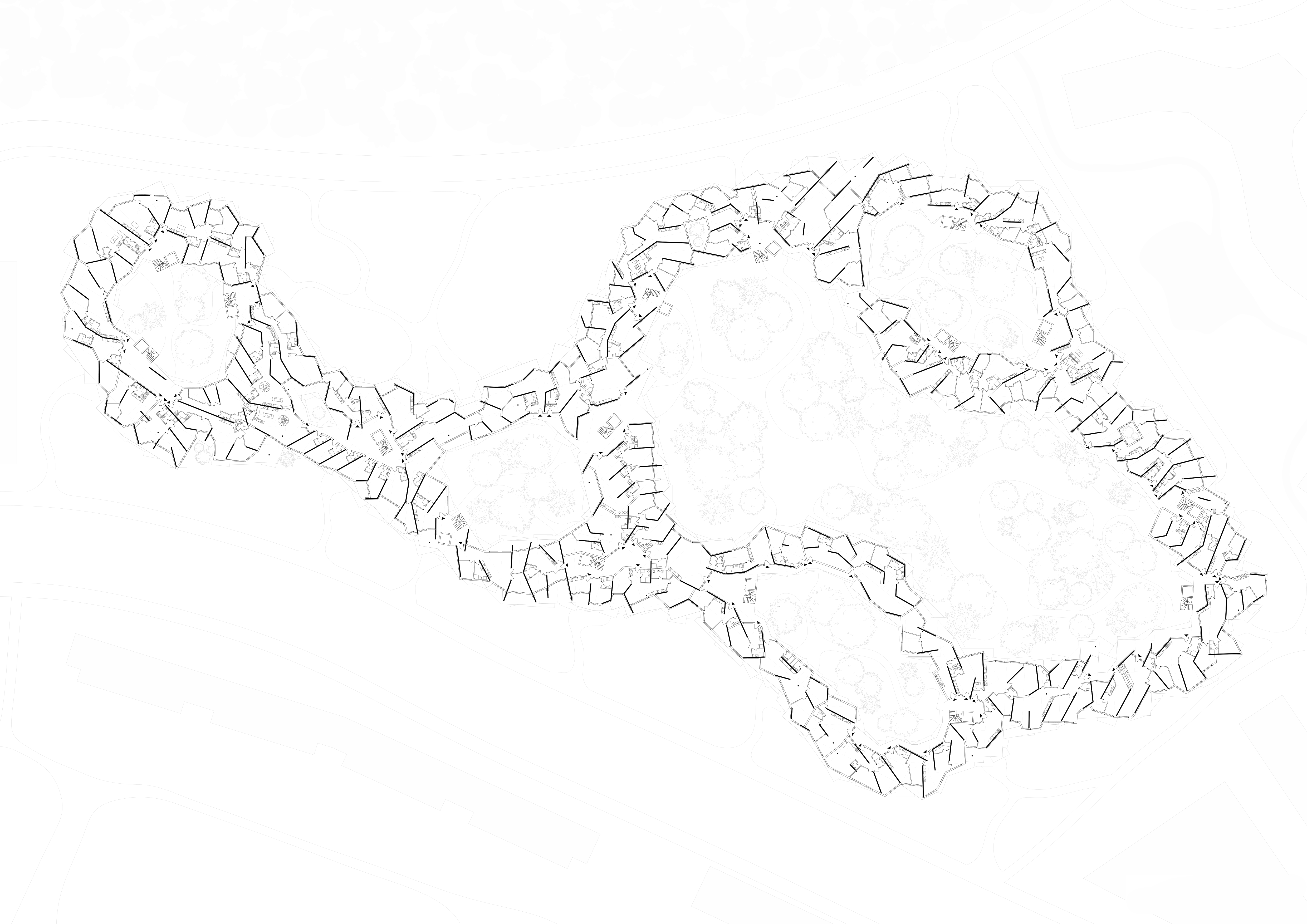

Detailed architectural drawing showing atypical apartment typologies created through the interlocking of prefabricated wooden elements, derived from algorithmic design based on a physical model, illustrating innovative and flexible residential unit layouts.

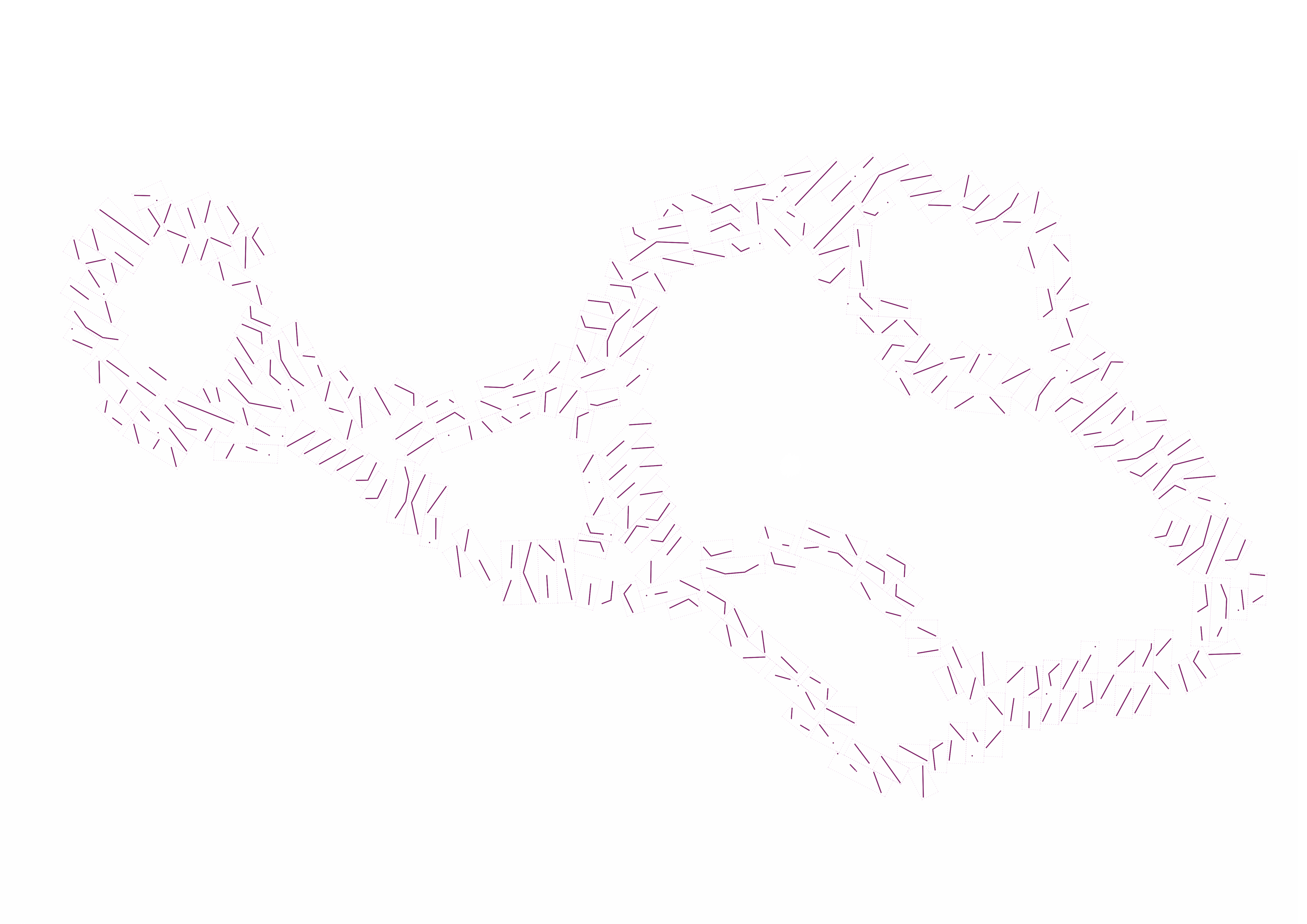

Detailed architectural diagram of the structural framework composed of numerous small, interlocking prefabricated wooden elements (pink dashes), generated through algorithmic design, illustrating complex structural patterns.

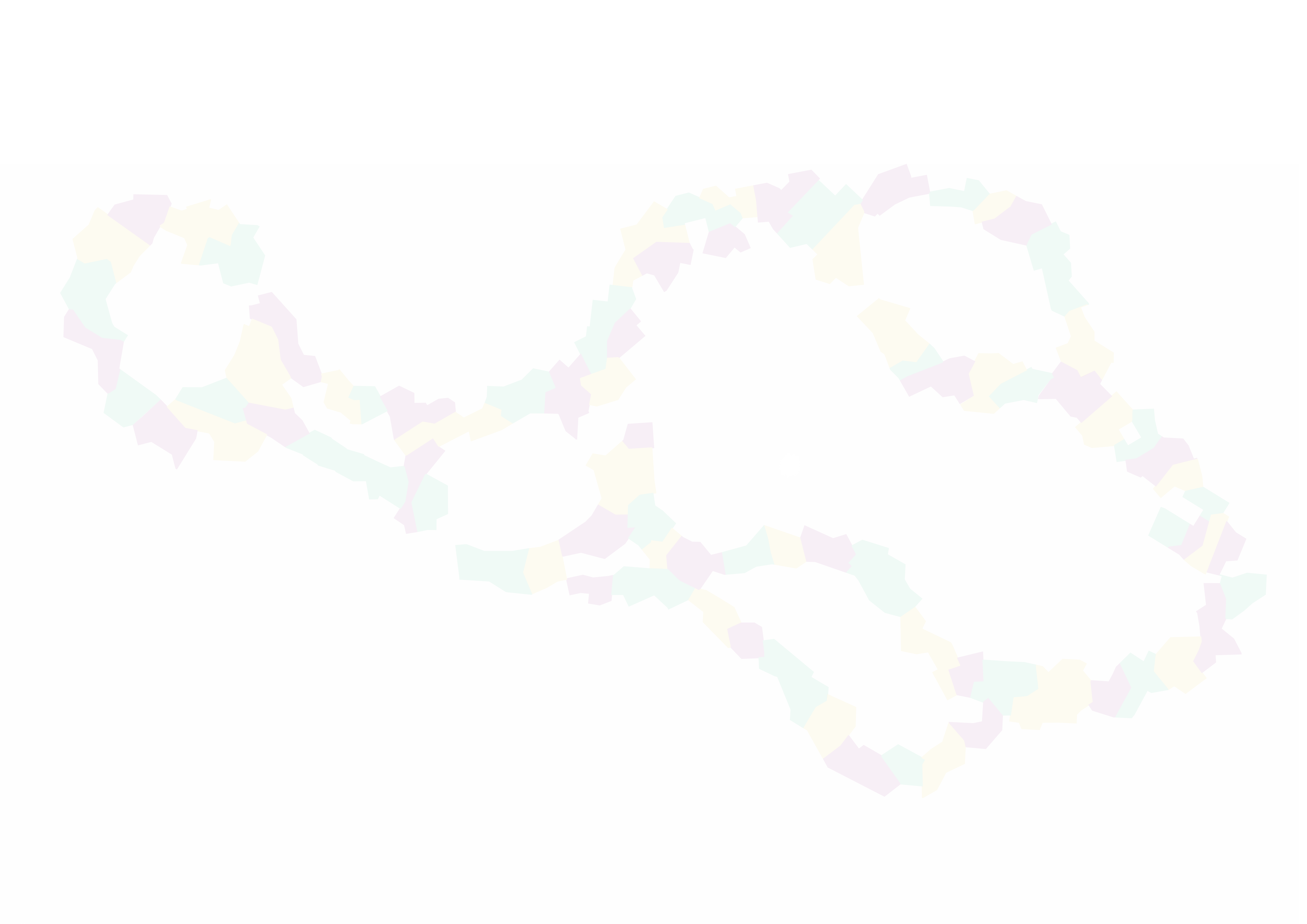

Architectural diagram showing the abstract distribution layout of apartments within an interlocking prefabricated wooden structure, illustrating residential typologies derived from algorithmic design.

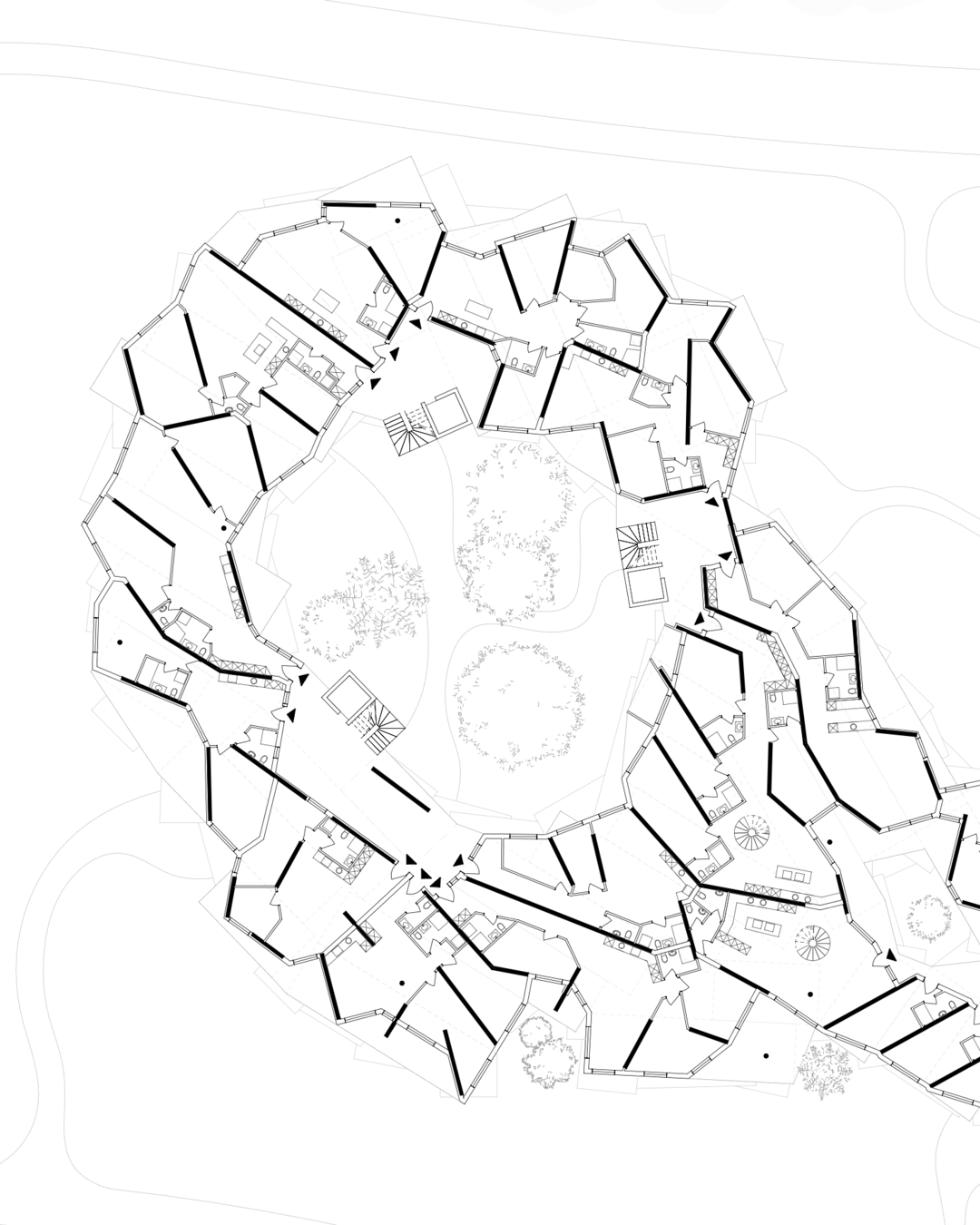

Architectural presentation showing a detailed floor plan of individual apartment layouts within an algorithmically designed prefabricated wooden structure, showcasing unique residential unit configurations and their relationship to green spaces.

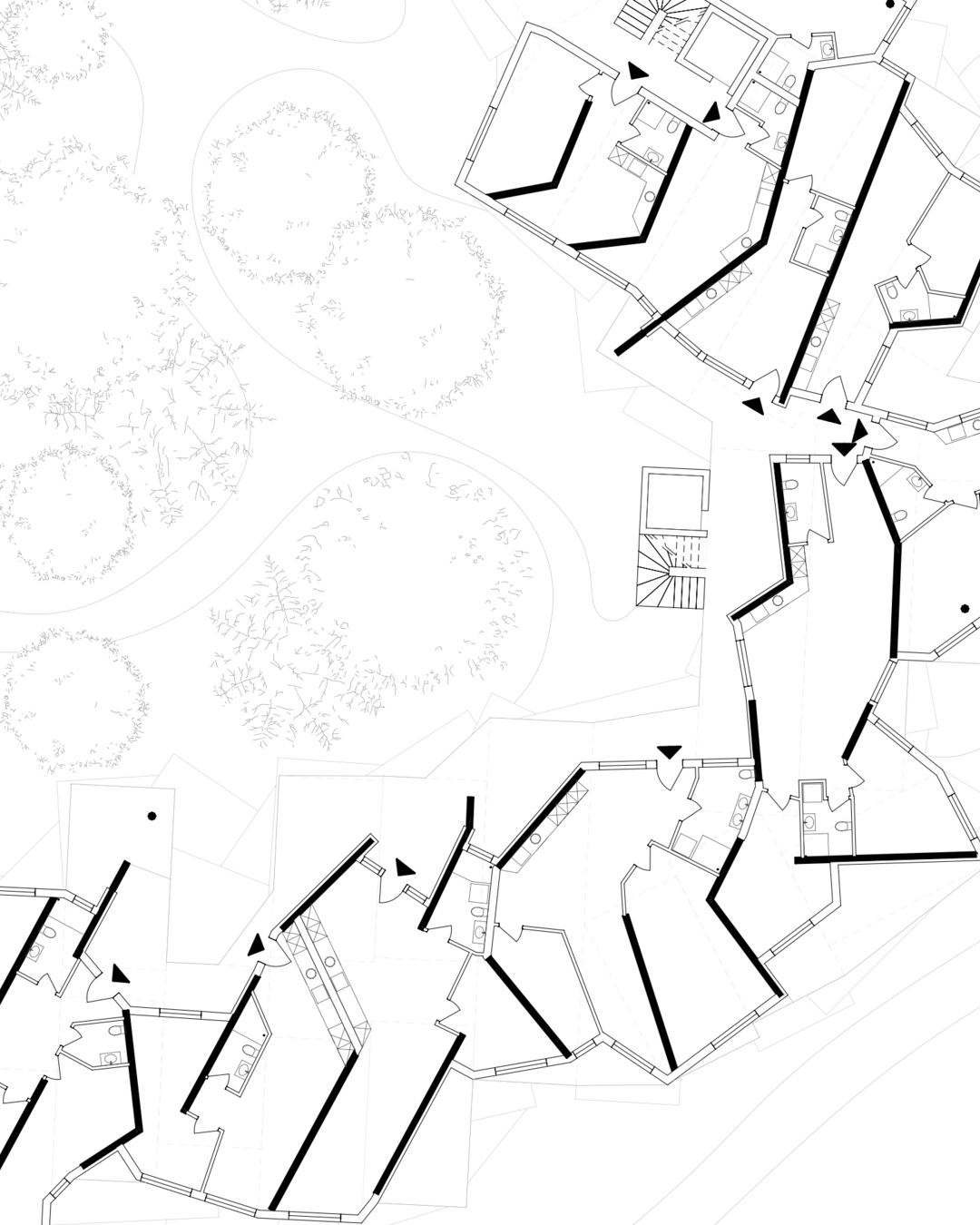

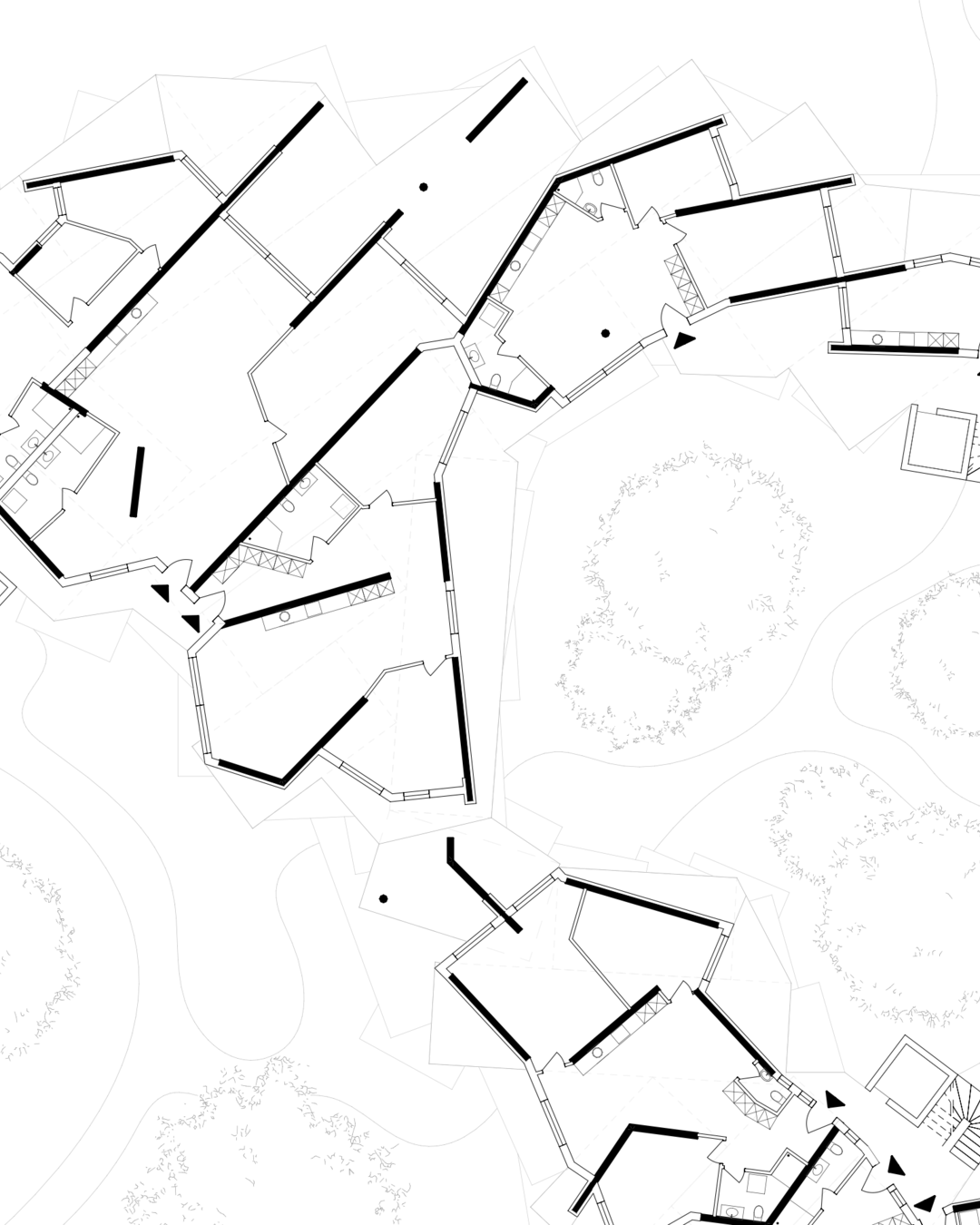

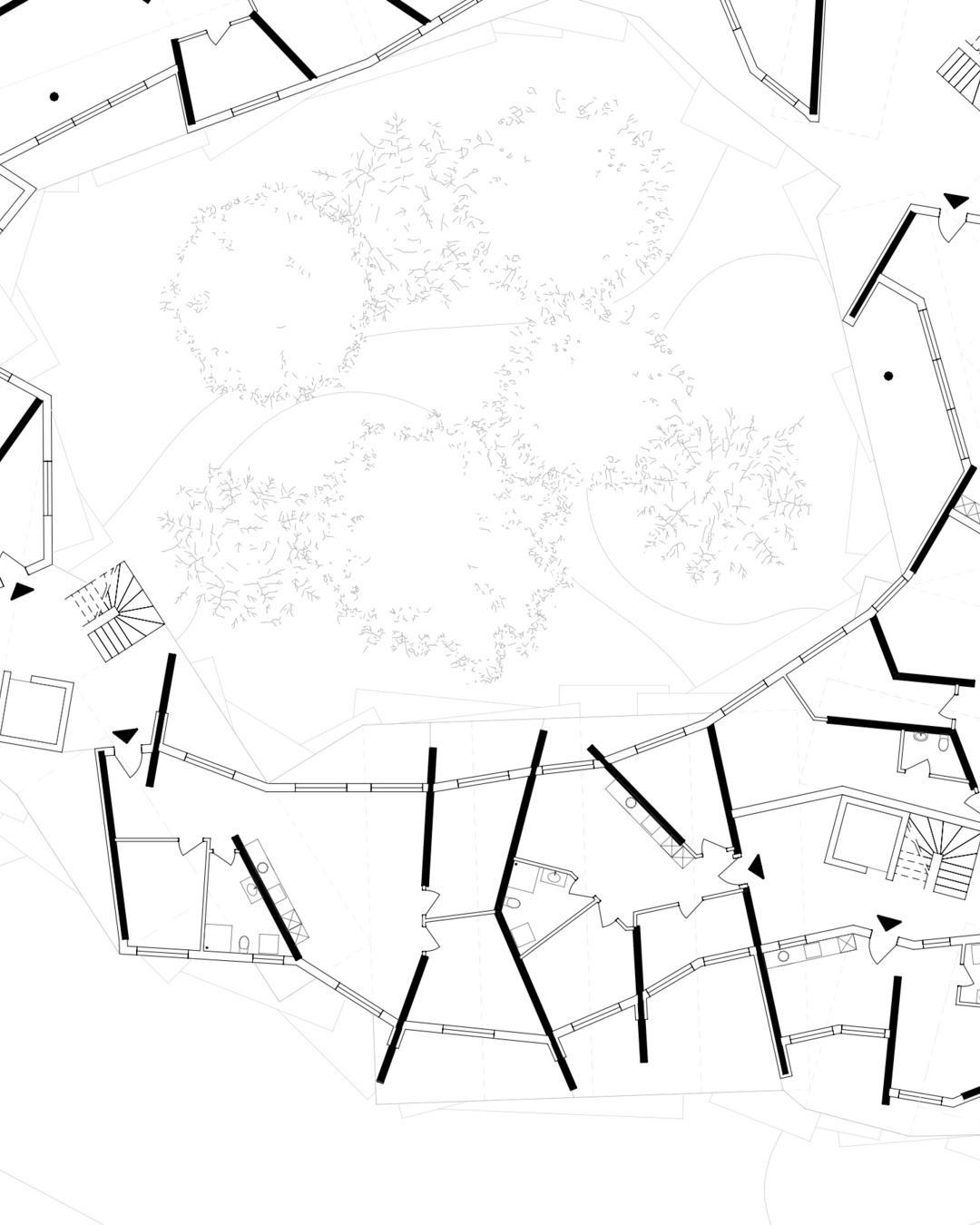

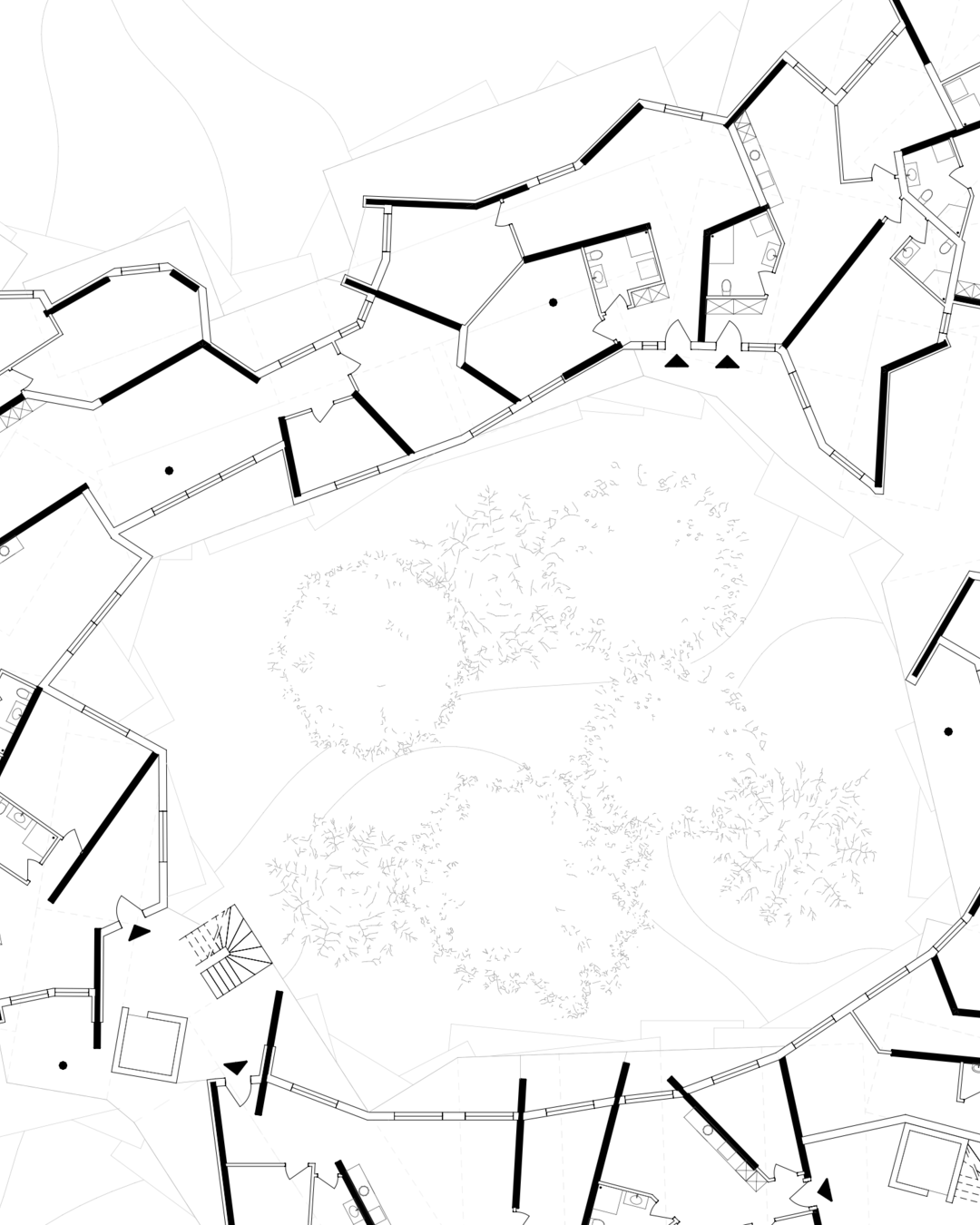

Detailed architectural floor plan showing a section of individual apartment layouts within an algorithmically designed prefabricated wooden structure, highlighting the intricate connections and adjacent outdoor spaces.

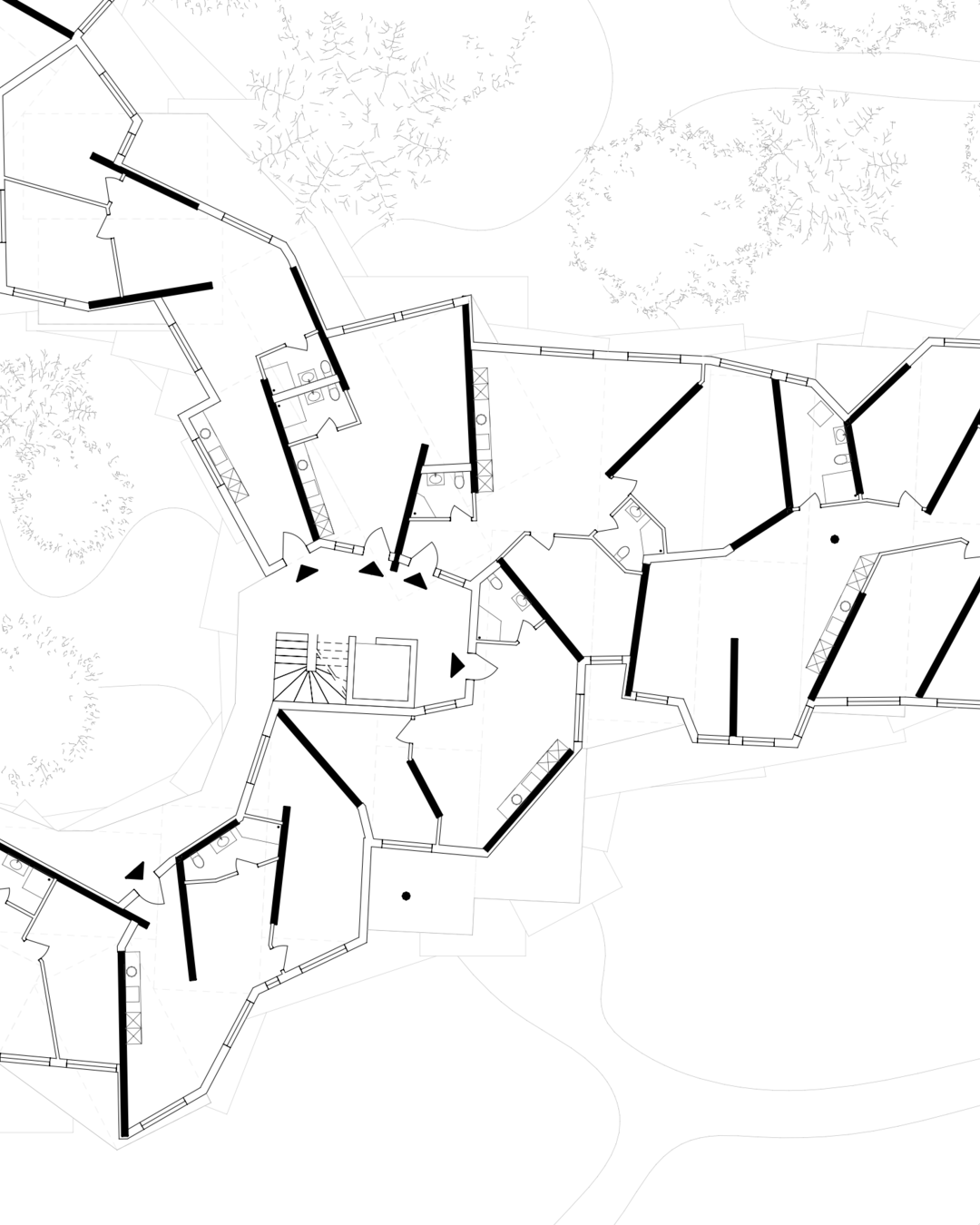

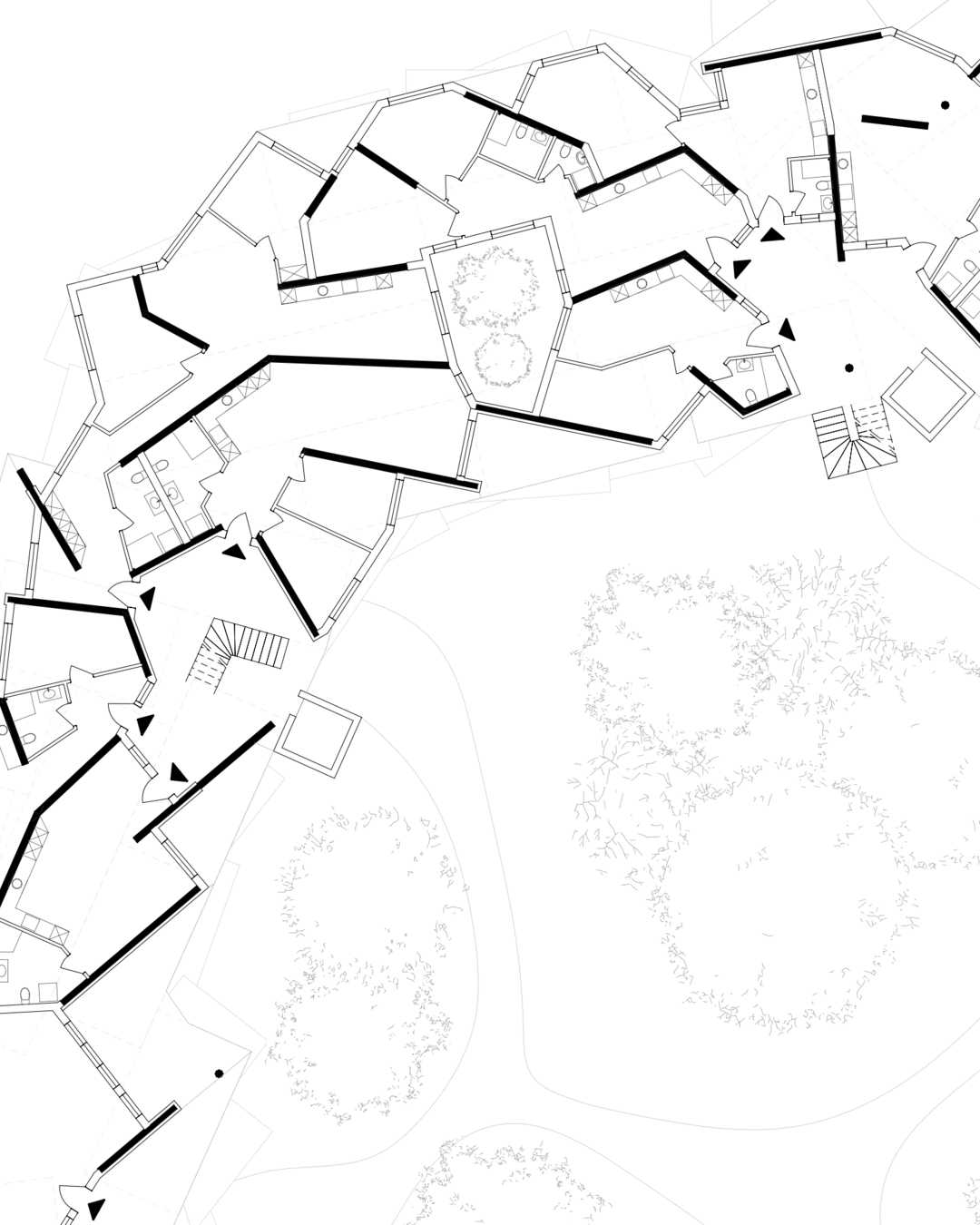

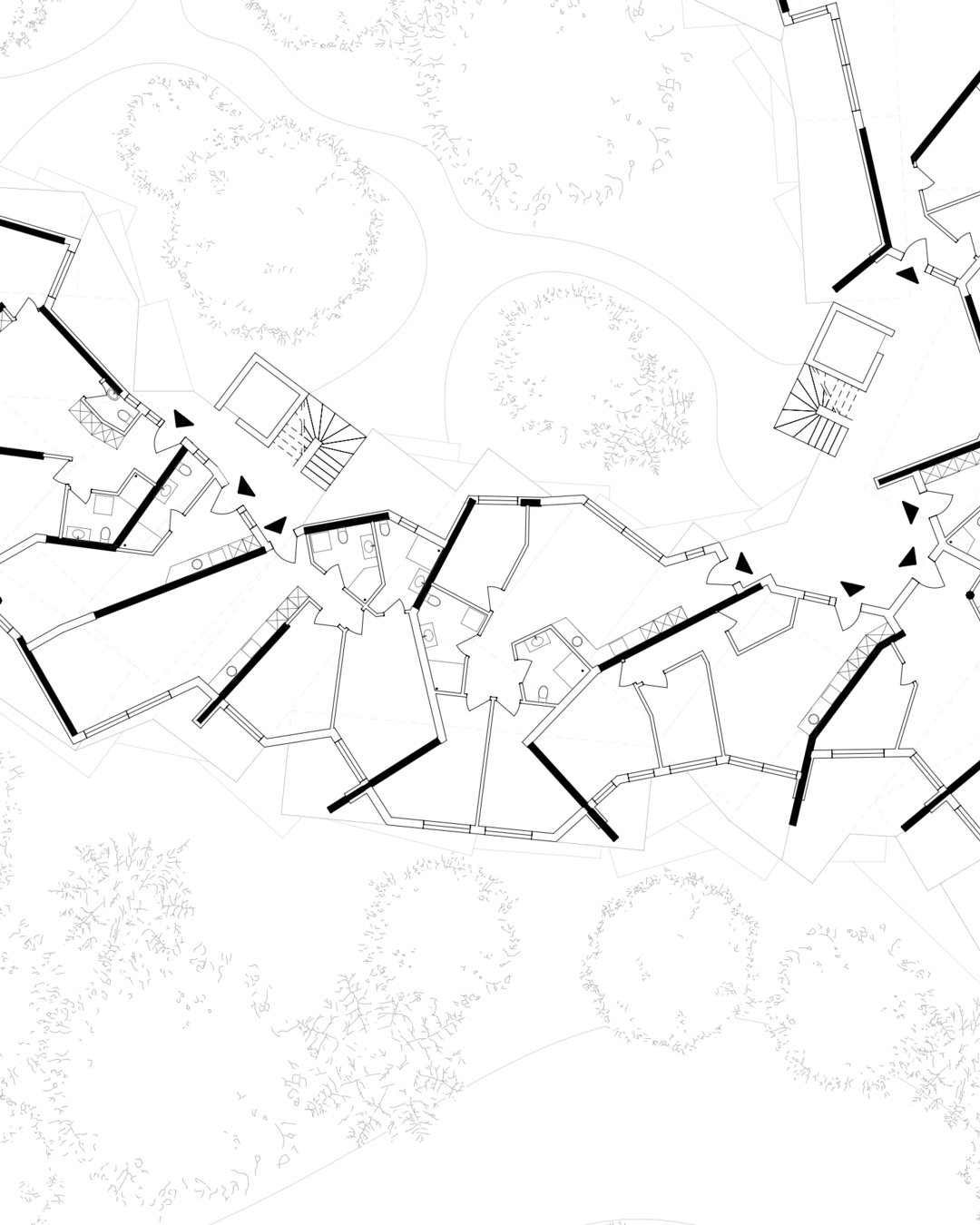

Close-up architectural floor plan detail revealing individual apartment layouts within an algorithmically designed prefabricated wooden structure, with surrounding organic landscape elements.

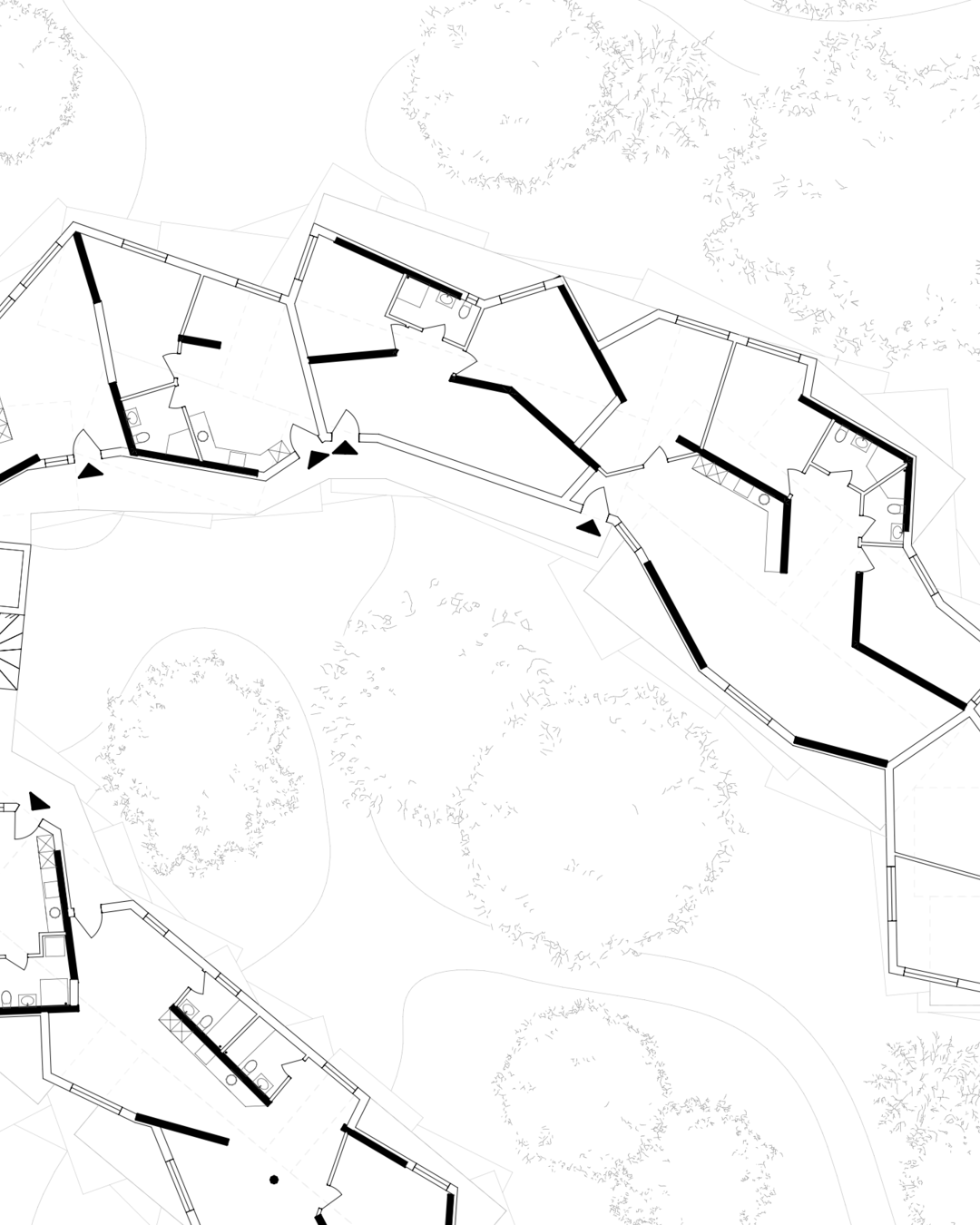

Architectural floor plan segment showcasing individual apartment layouts in an algorithmically designed prefabricated wooden building, featuring internal courtyards and curvilinear external boundaries.
Architectural floor plan zoom view illustrating intricate individual apartment layouts within an algorithmically designed prefabricated wooden structure, emphasizing varied unit forms and their relationship to surrounding green areas.

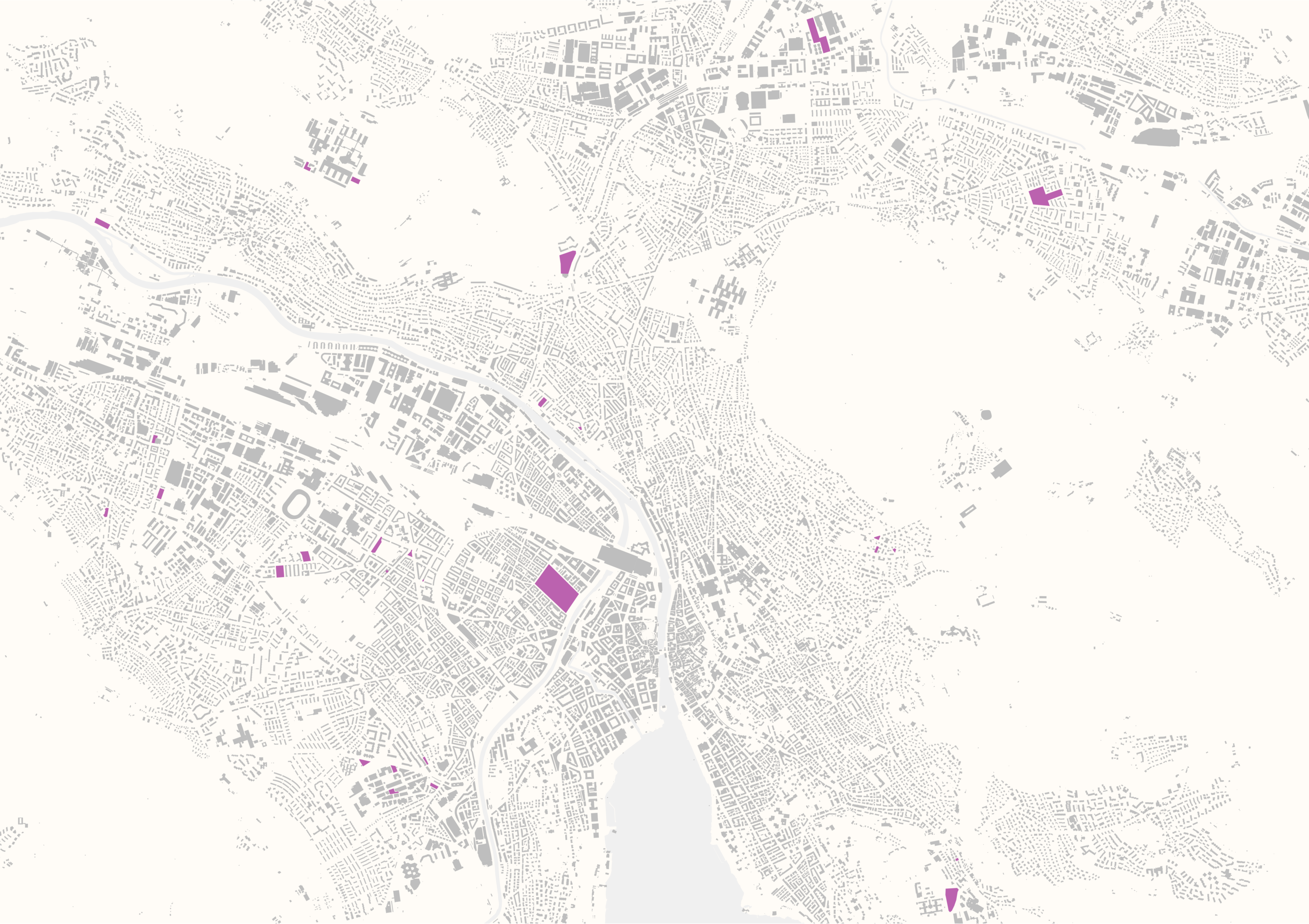

Urban planning diagram illustrating the large-scale deployment of a prefabricated wooden construction system across a map of Zurich, with purple highlighted areas indicating new development sites.

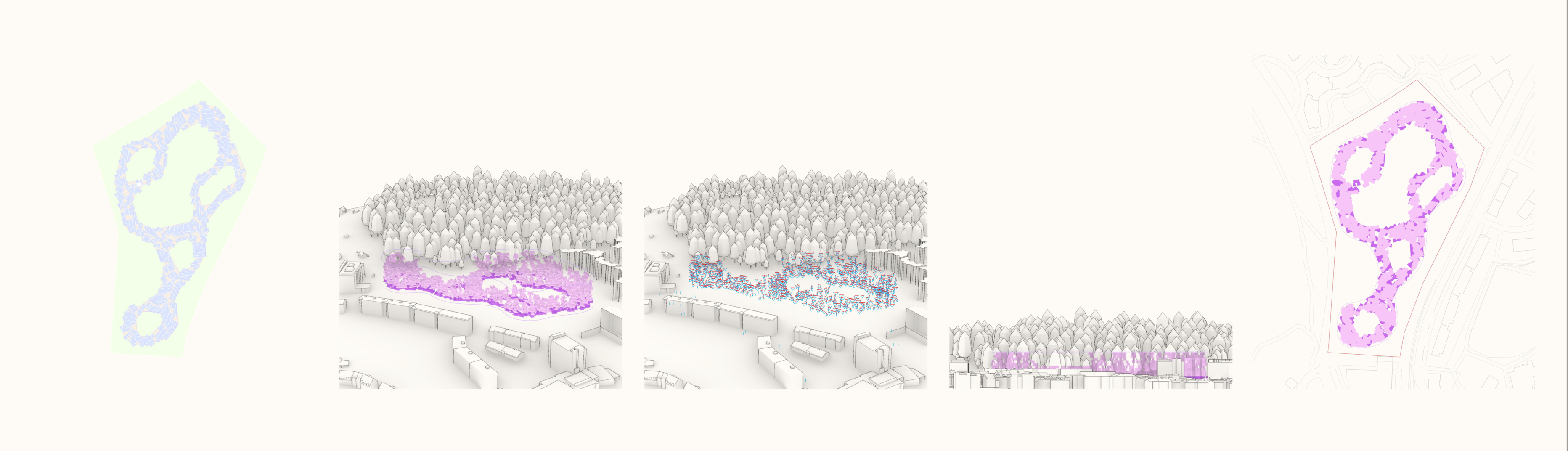

Series of architectural illustrations demonstrating the automated, algorithmic generation process, showing a floor plan, axonometric structure, facade, and site plan evolving from initial abstract shapes to detailed building representations.

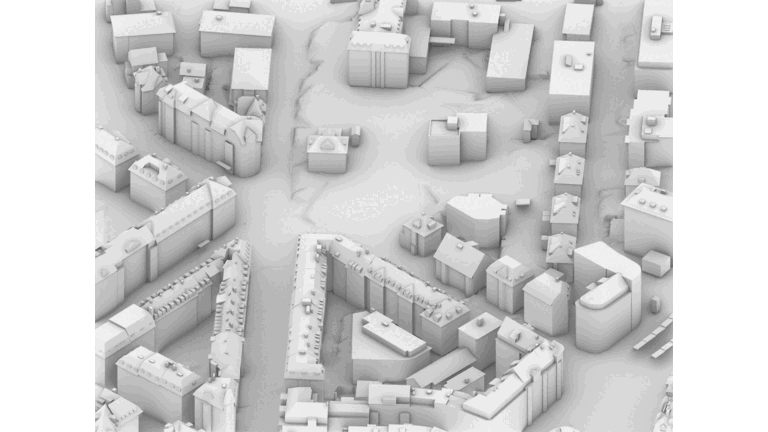

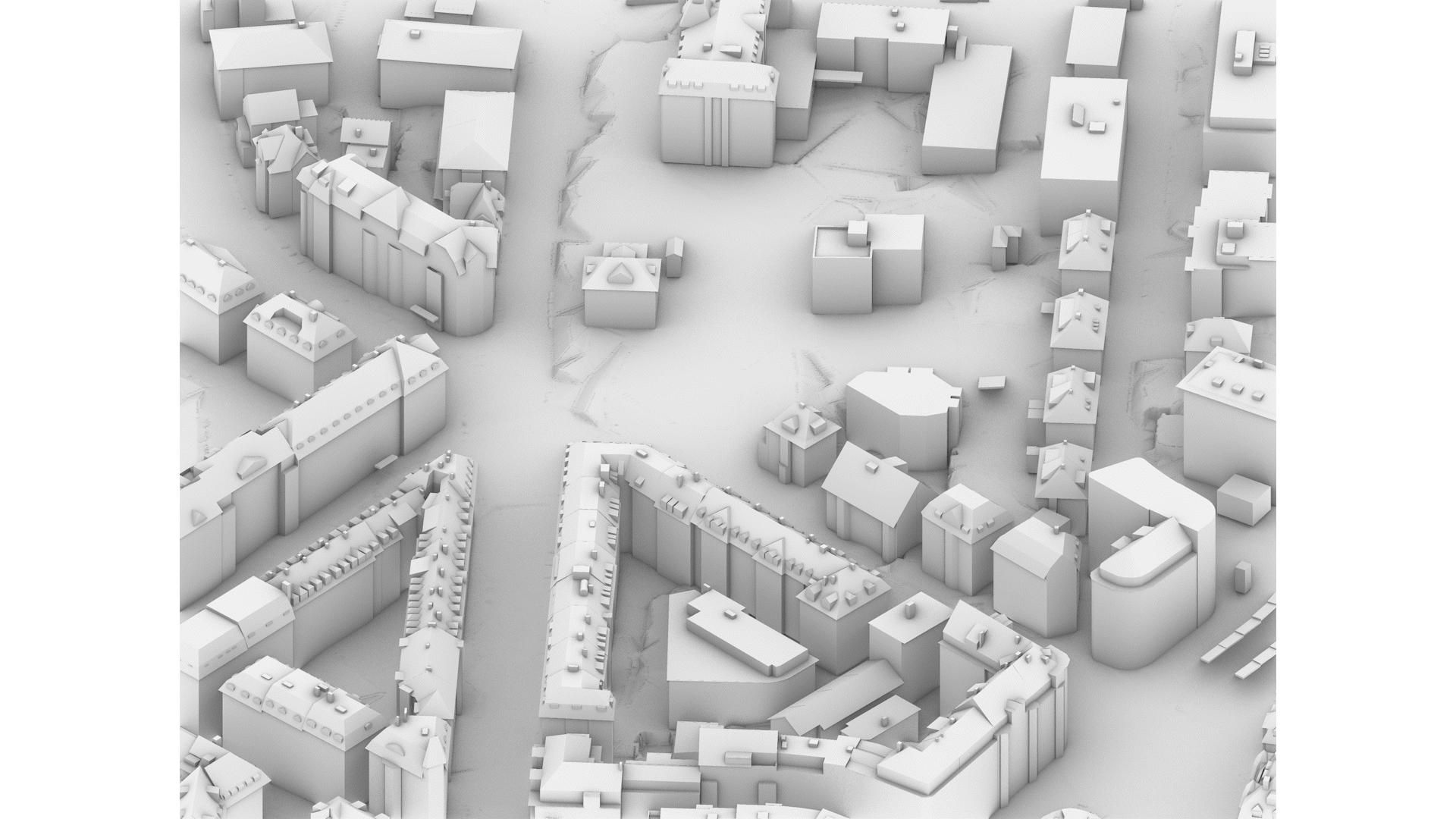

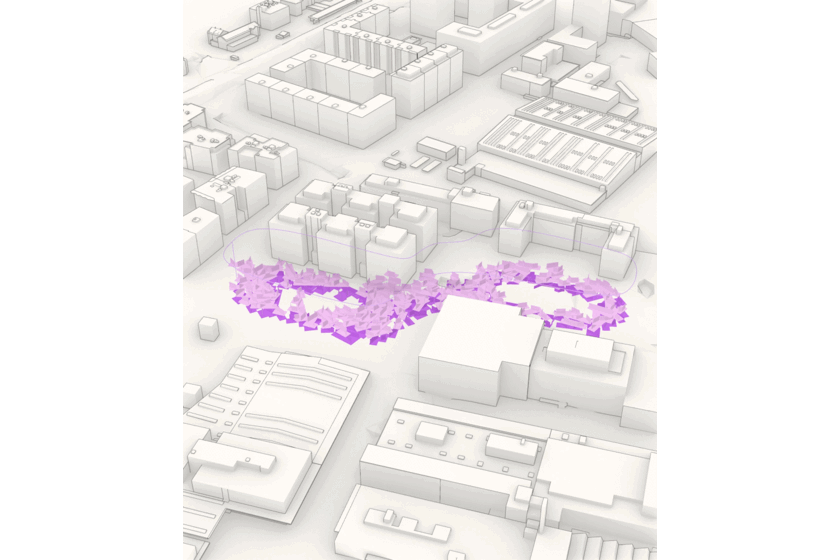

Animated axonometric presentation of prefabricated wooden construction deployed on urban plots.
Grid layout of multiple axonometric drawings, summarizing the application of a prefabricated wooden construction system across various urban plots, showcasing diverse building configurations and their integration within existing cityscapes.
Grid layout summarizing multiple abstract floor plans of a prefabricated wooden construction system, illustrating various residential layouts and their potential for diverse configurations across different urban plots.

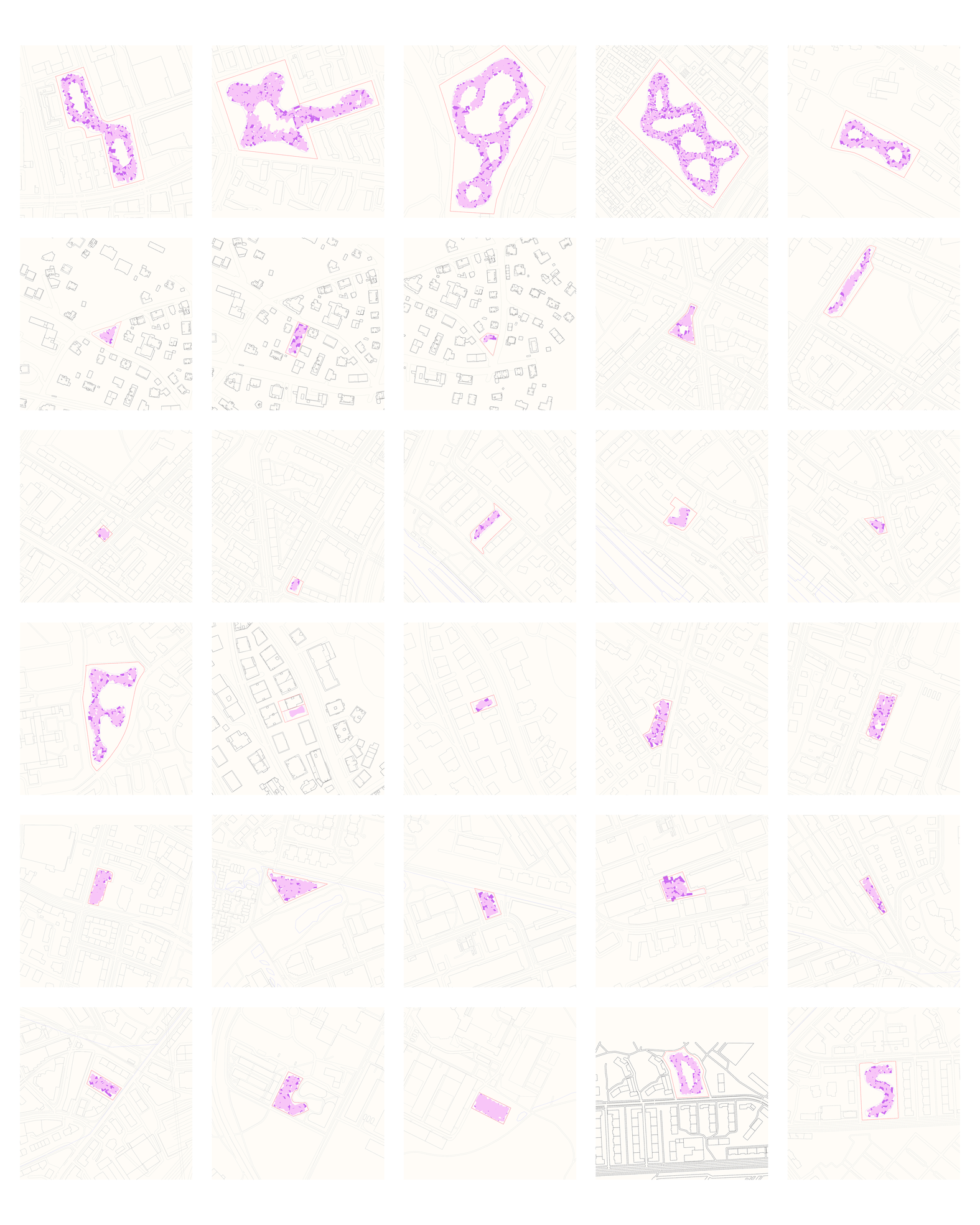

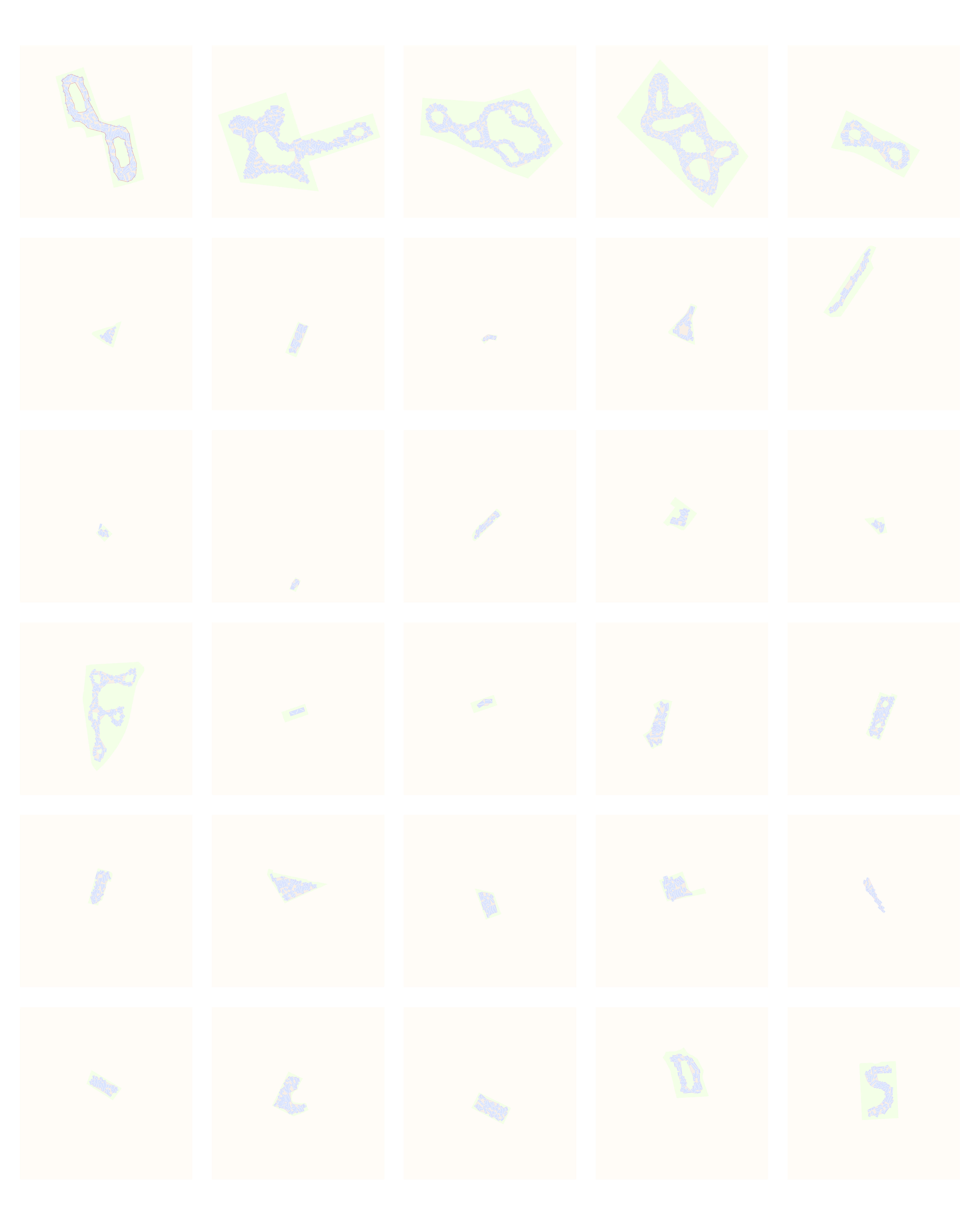

Grid layout summarizing multiple site plans, demonstrating the adaptable deployment of a prefabricated wooden construction system across various urban plots, highlighting how the system integrates with different land parcels.
Axonometric architectural diagram depicting the on-site installation of a prefabricated timber construction, with cranes assembling modular wood building elements.
Architectural elevation drawing providing a detailed view of the facade of a prefabricated wooden building, highlighting timber construction details and the modular nature of the structure.
Architectural model of a modern residential design featuring prefabricated timber construction, showcasing a sustainable wooden structure with multiple balconies and large windows, illustrating contemporary modular building aesthetics.

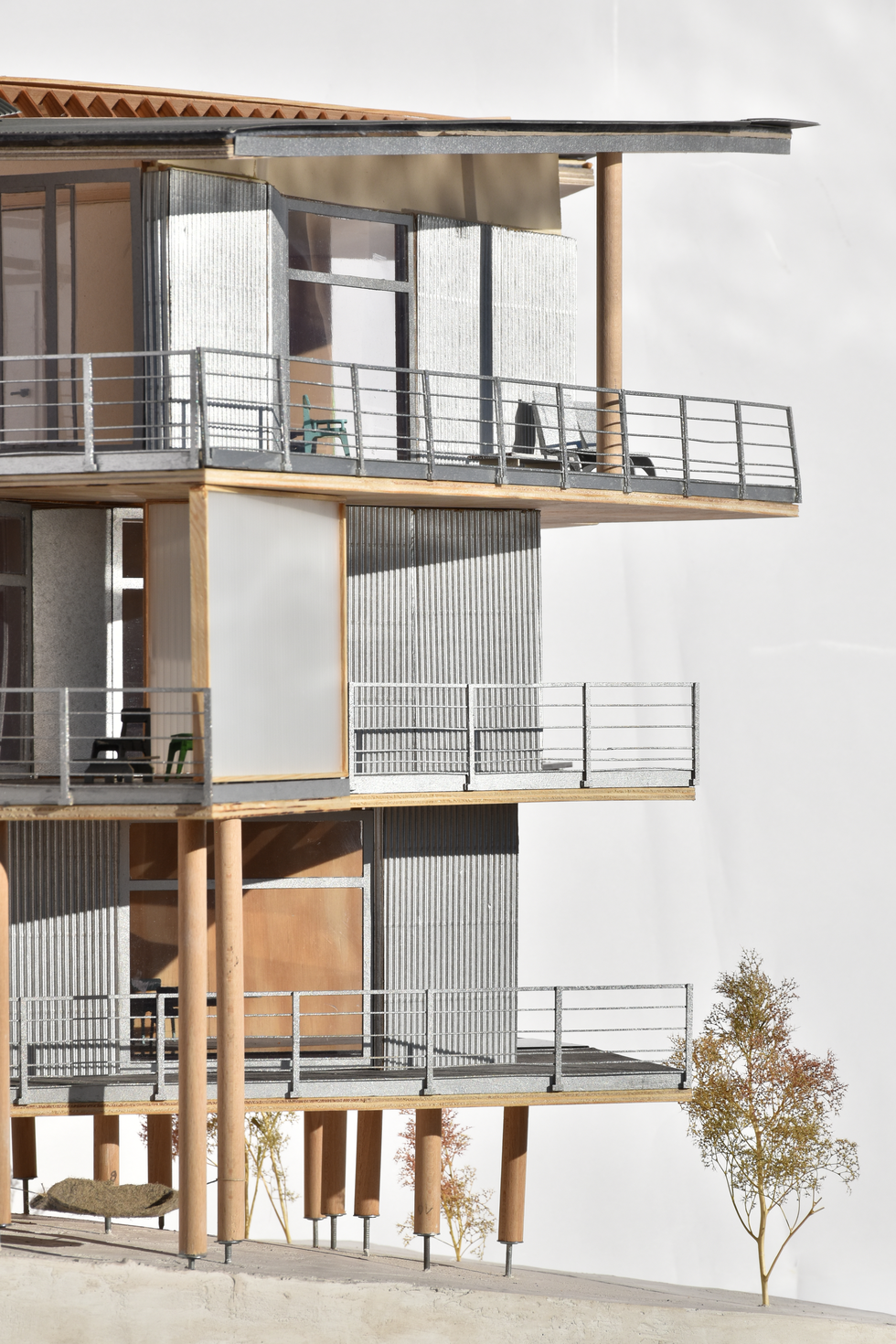

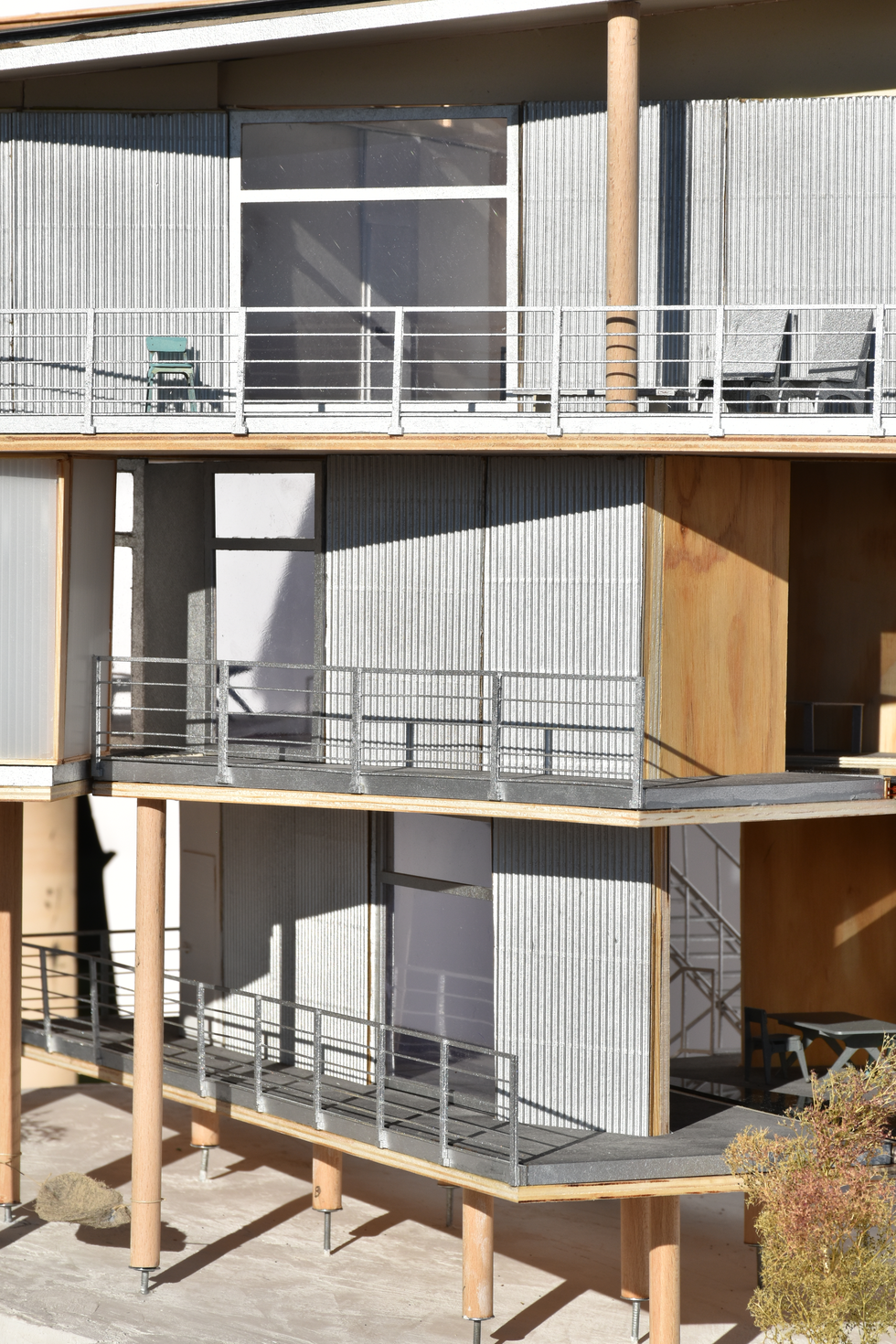

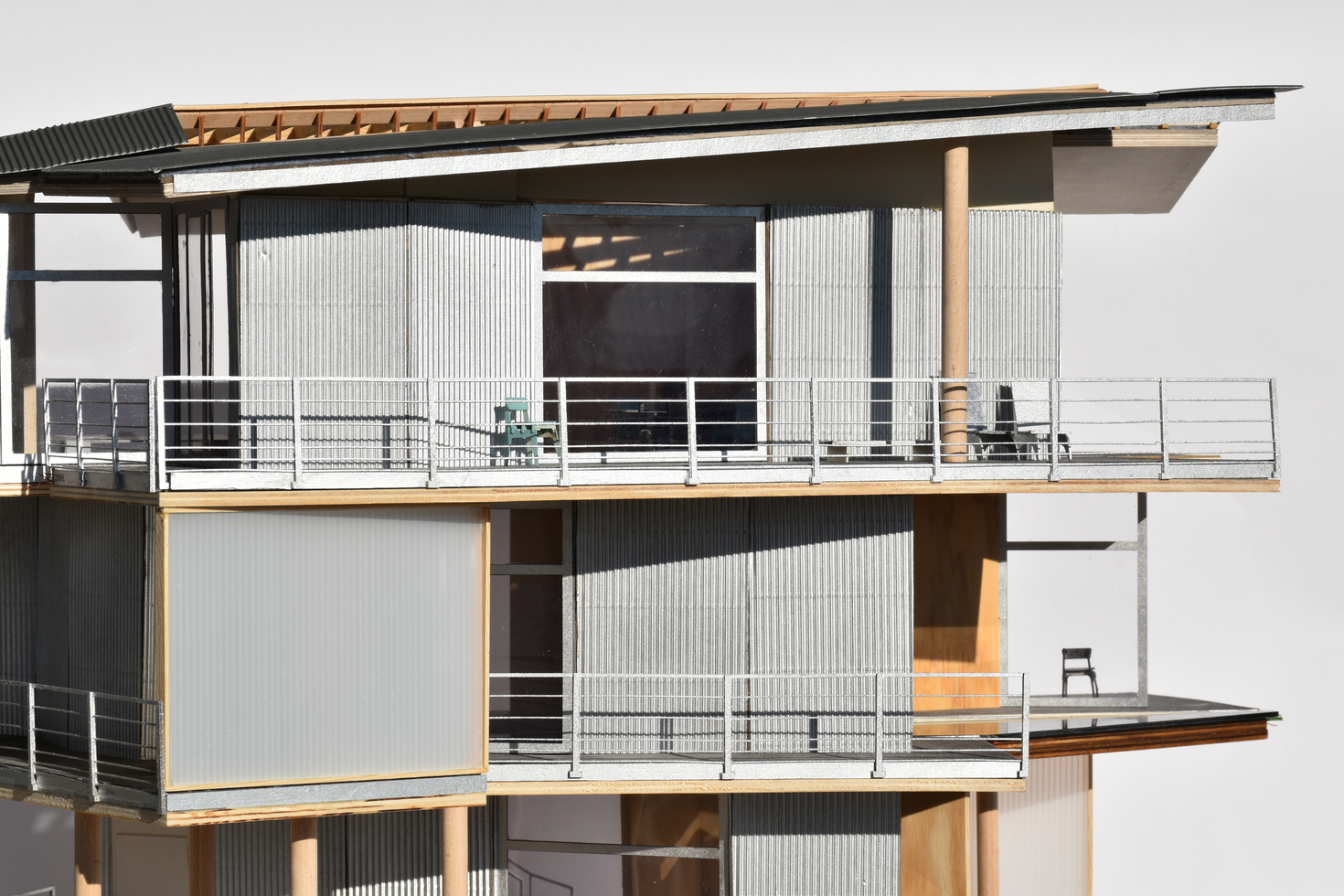

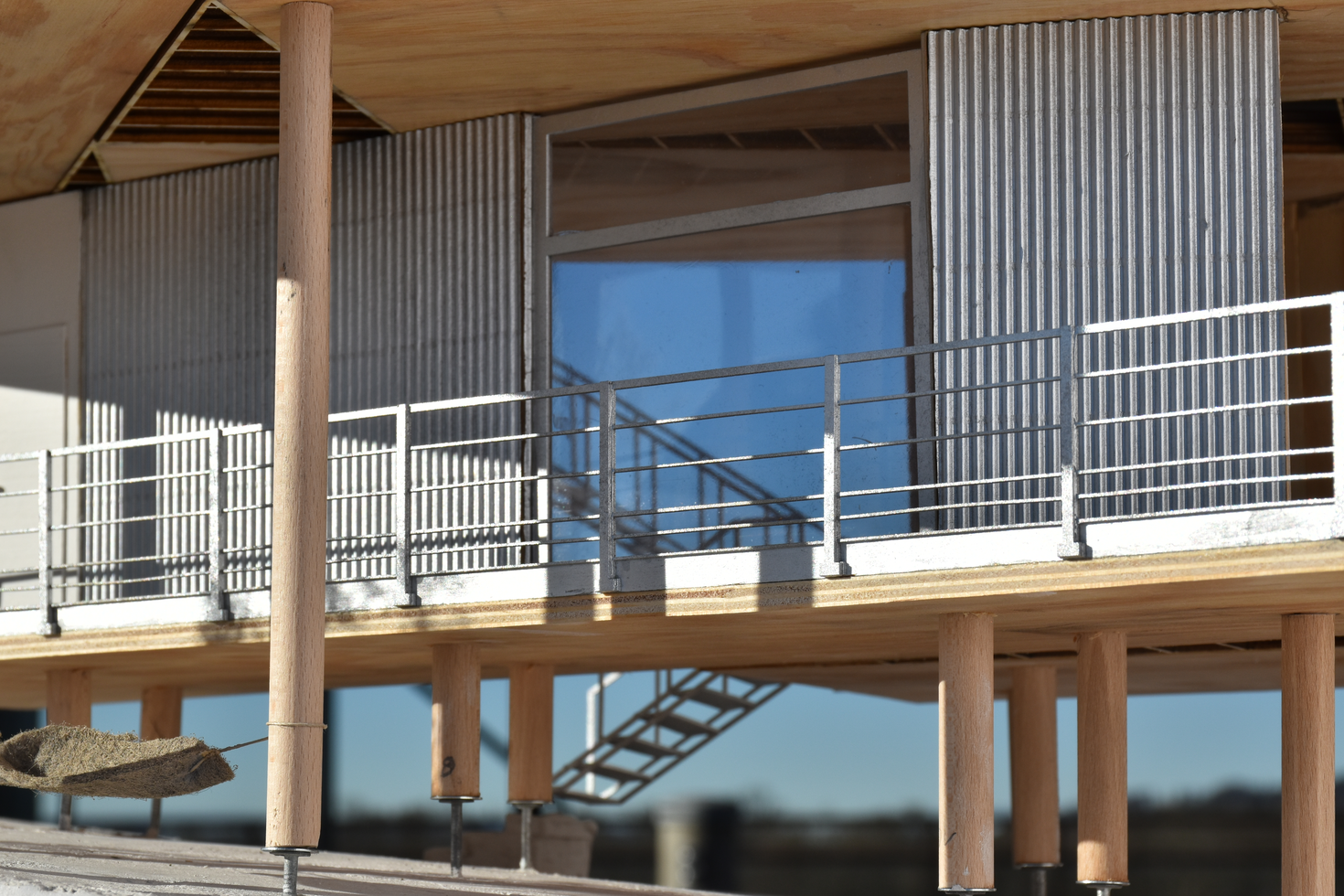

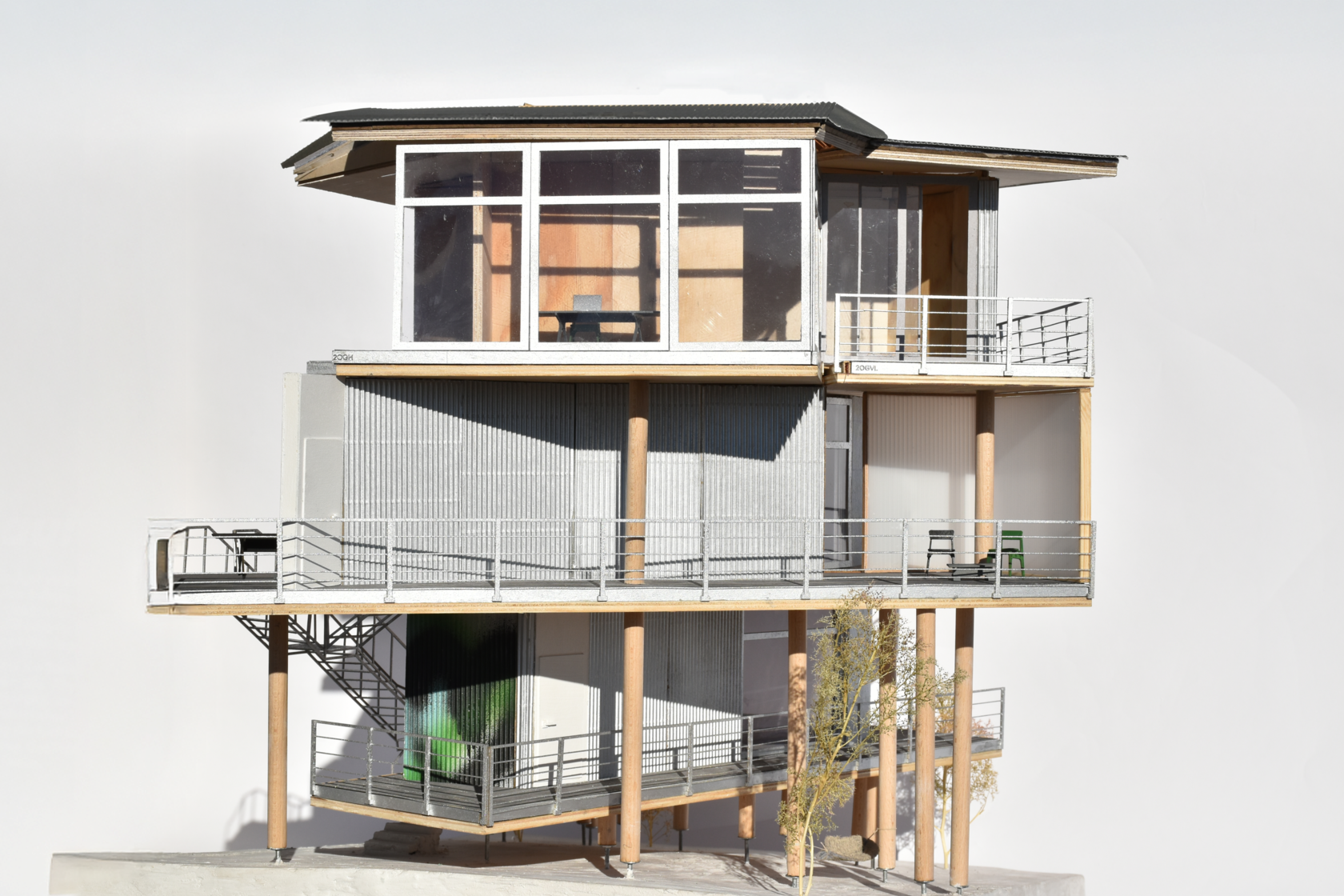

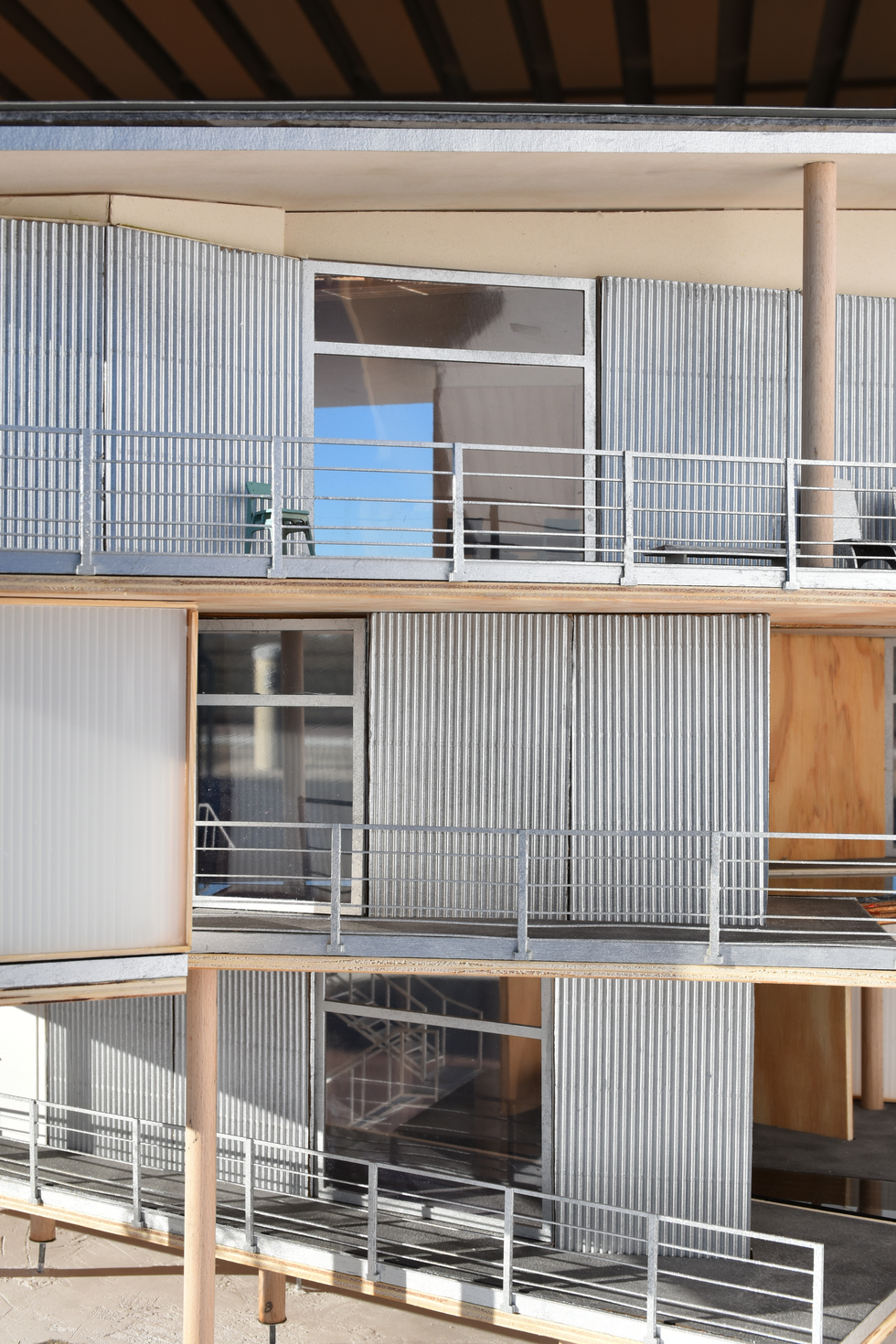

Detailed architectural scale model of a modern residential building featuring timber construction with corrugated metal cladding and multiple balconies, showcasing intricate building materials and construction details.

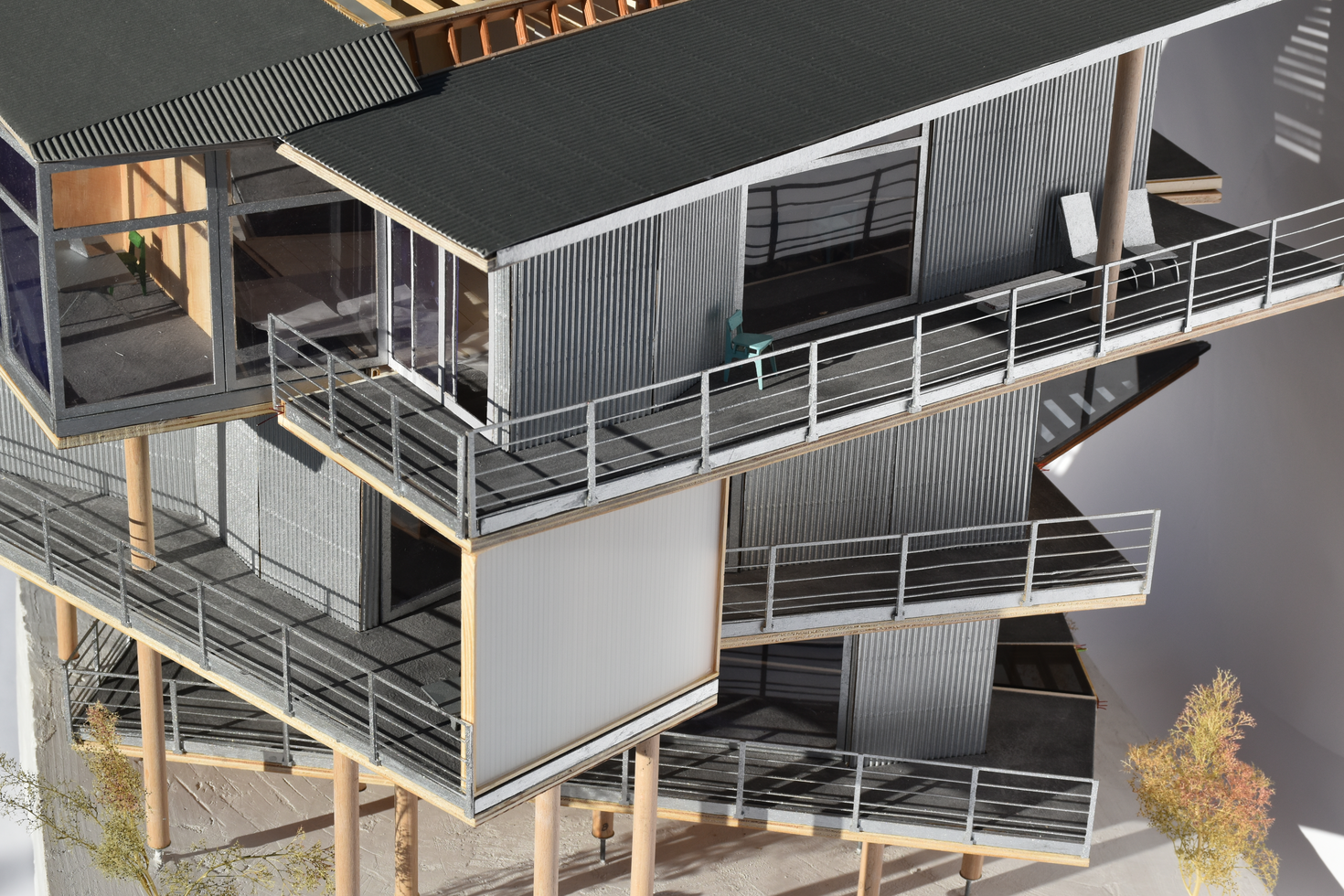

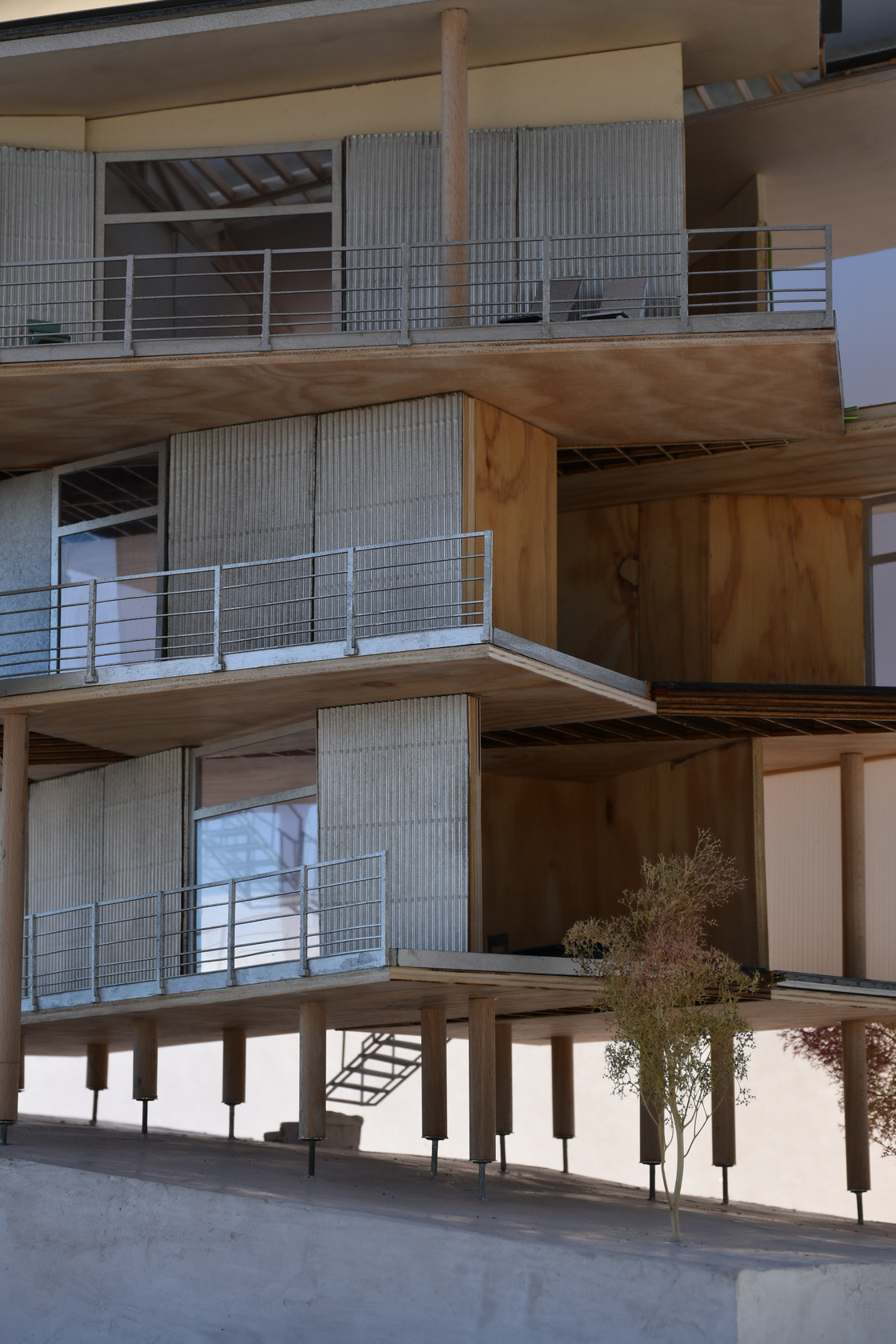

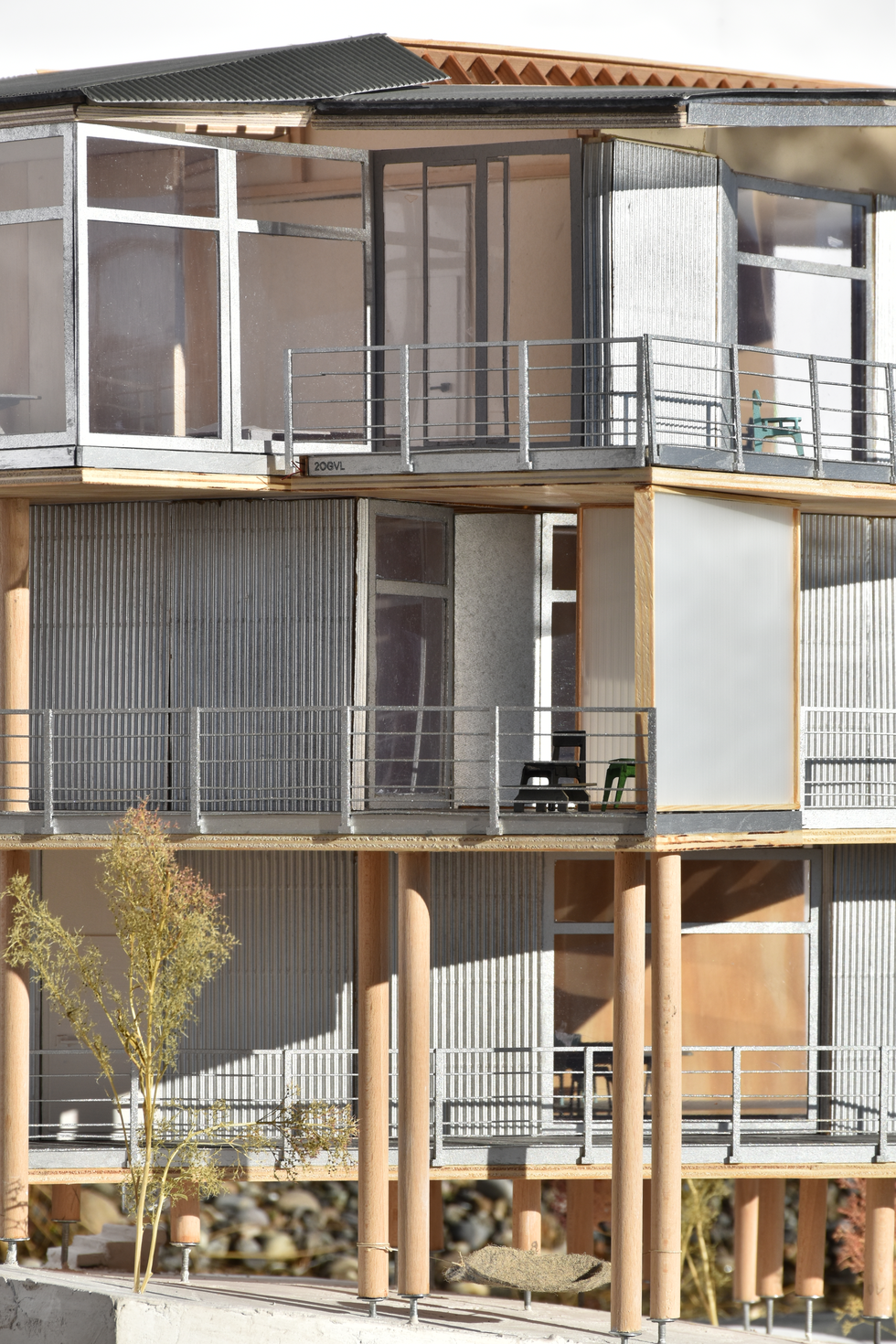

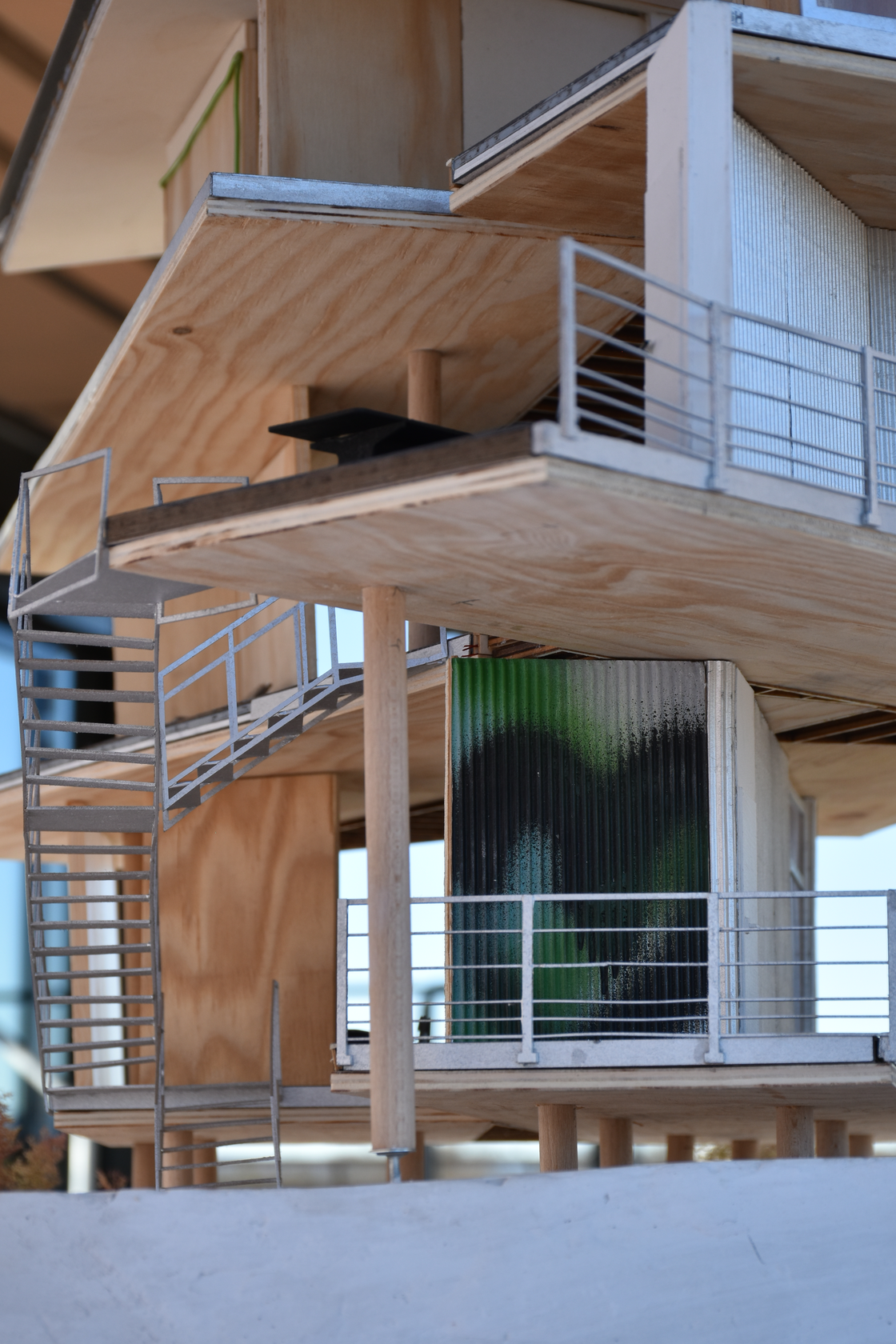

Architectural scale model of a modern residential building, highlighting timber construction, corrugated cladding, and various balconies, providing a detailed view of the building materials and design.

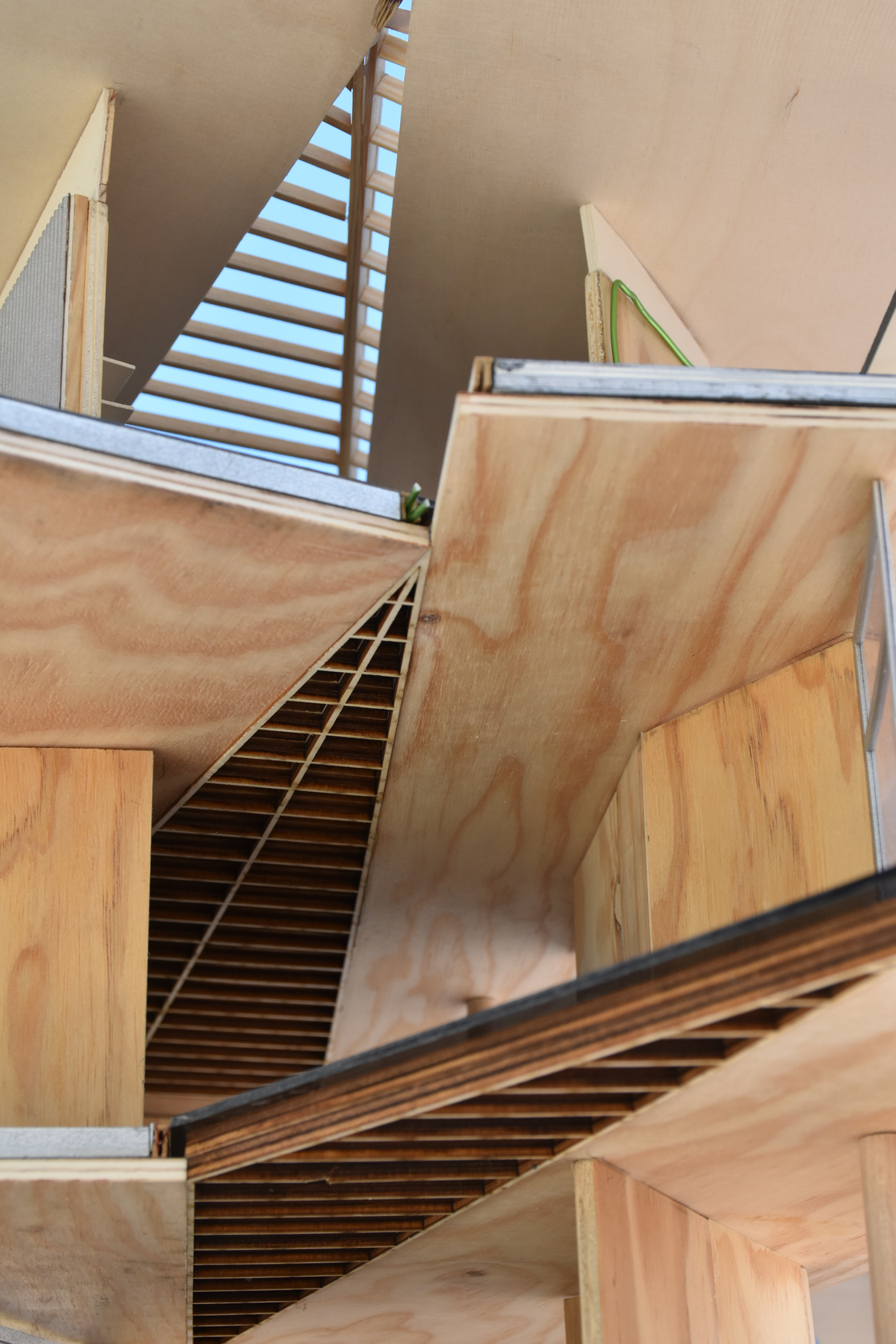

Detailed architectural scale model of a timber construction, featuring corrugated cladding, balconies, and a visible wood structure, emphasizing the intricate design and material choices.

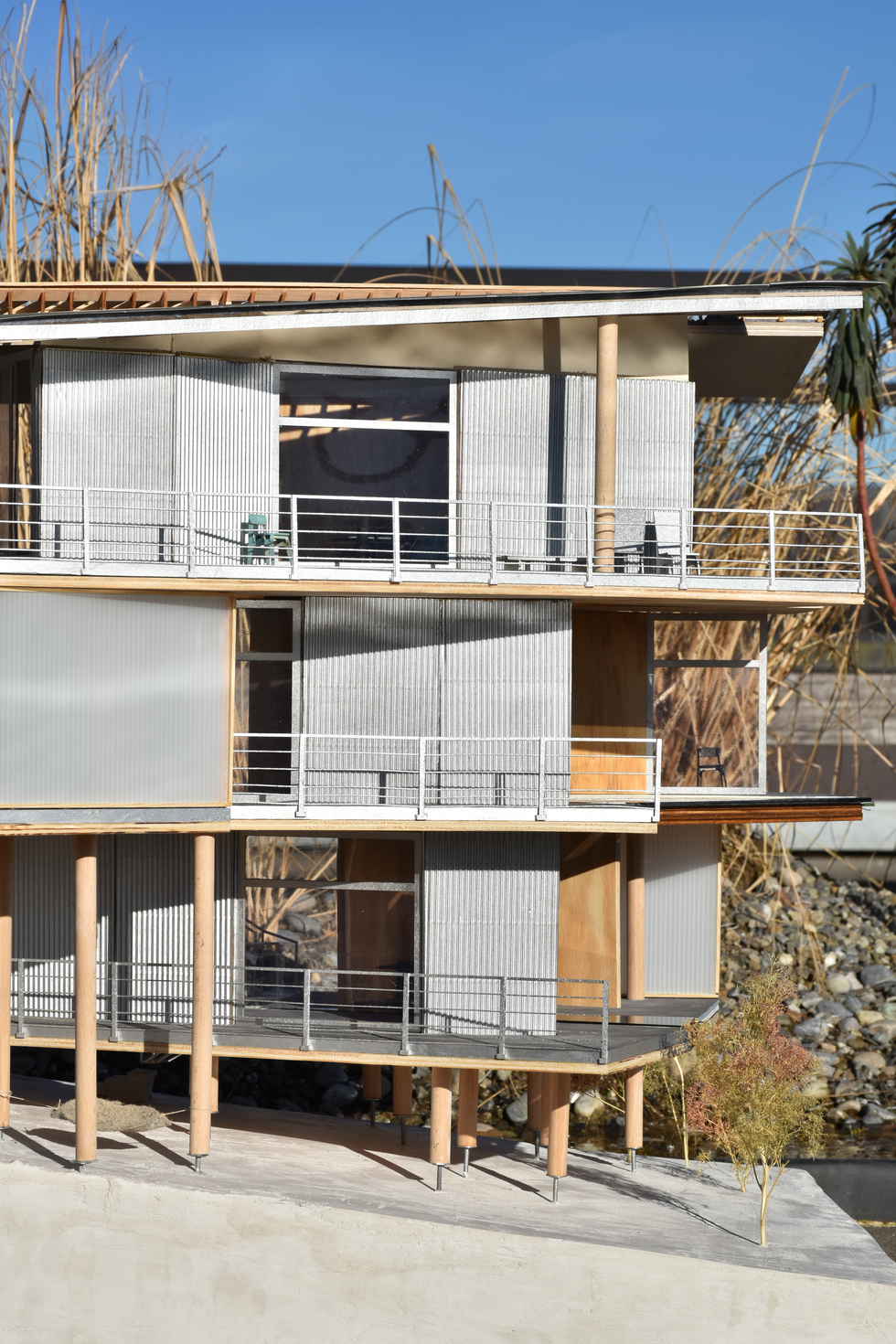

Prefabricated wood architectural model, illustrating a contemporary building designed through algorithmic processes, creating dynamic and informal living spaces.

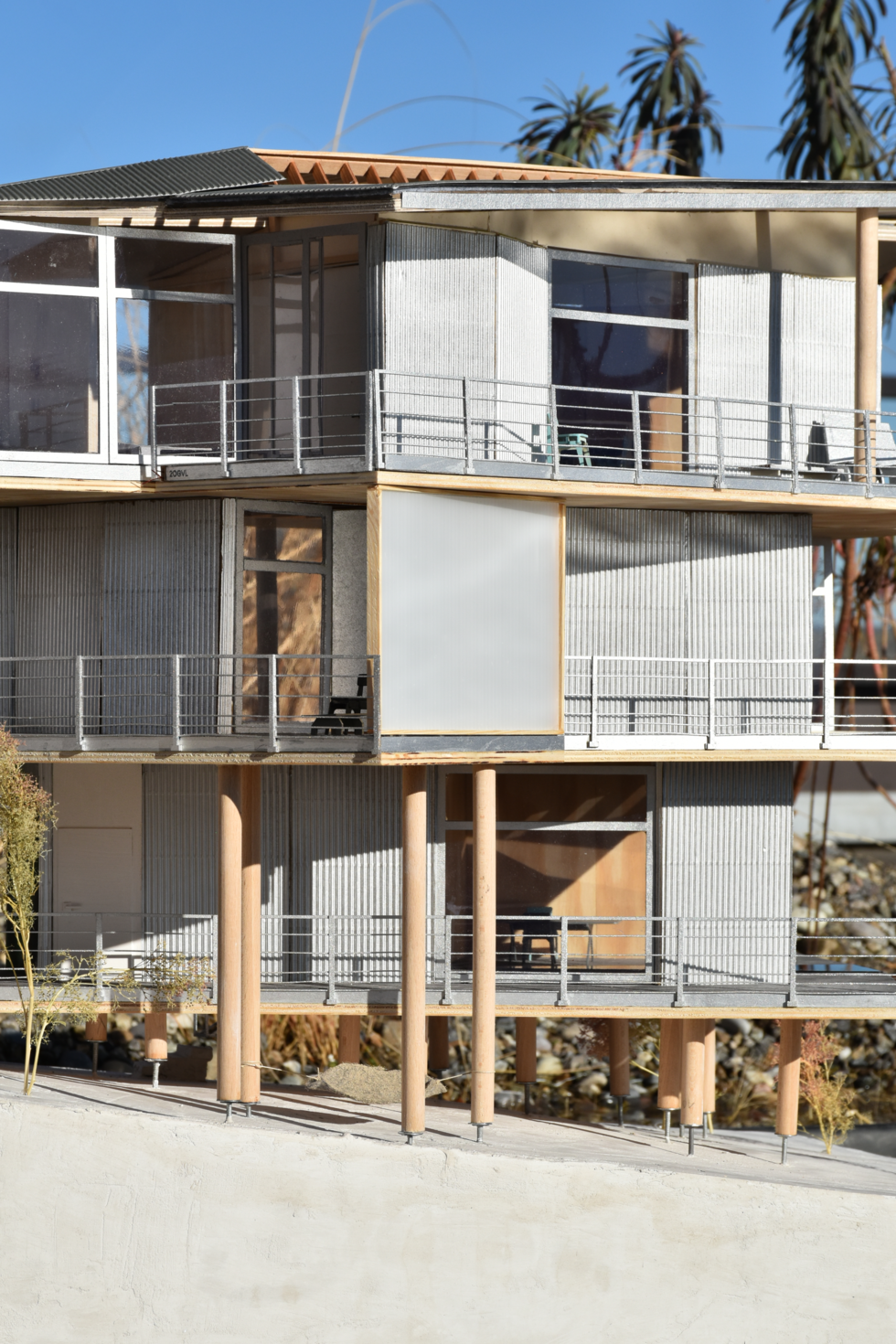

Algorithmic architectural model featuring modular wood construction that creates primitive, informal spaces, demonstrating innovative design approaches for flexible living.
Architectural rendering of a contemporary residential building featuring timber balconies contrasted with a concrete facade, showcasing a blend of materials.
Architectural rendering of a modern timber apartment building with distinct stacked balconies, highlighting a unique residential typology and vertical living.
Architectural rendering of a residential tower composed of prefabricated timber modules, developed through algorithmic design, showing a structure with individual protruding units.
Architectural rendering of a parametric modular housing complex, composed of prefabricated timber units, illustrating an algorithmic design approach that creates dynamic and varied building forms.
Architectural rendering of modular residential towers built from prefabricated timber blocks, featuring a parametric facade that creates a unique and undulating exterior.
